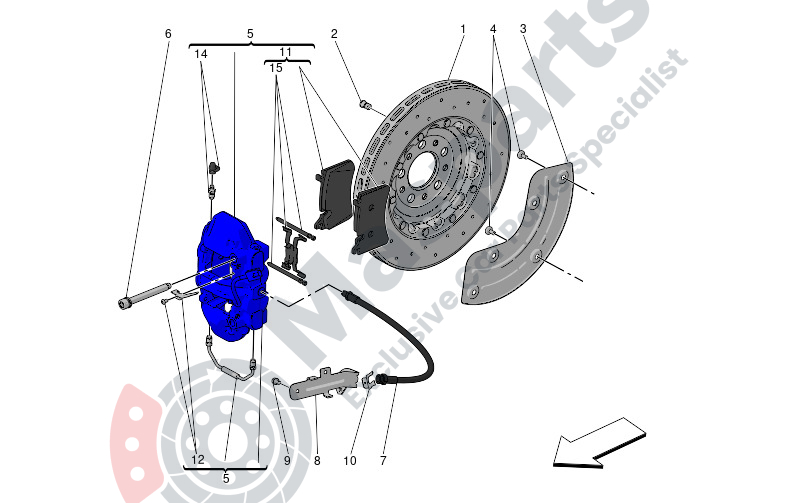

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670162142 | Rear Brake Disc |
$3,846.47 |
|
|
| 2 | M-675000081 |
Screw
|
$5.08 |
|
|
| 3 | M-670220160 | Brake Disc Shield |
$54.99 |
|
|
| 4 | M-675001032 | Screw |
$1.28 |
|
|
| 6 | M-675001192 | Screw |
$5.04 |
|
|
| 7 | M-670156282 | Pipe |
$10.85 |
|
|
| 8 | M-670212954 | Bracket |
$43.90 |
|
|
| 9 | M-675001159 | Screw |
$4.25 |
|
|
| 10 | M-675000276 | Plate |
$0.96 |
|
|
| 11 | M-673012307 | Mc20 Rear Brake Pads Kit |
$1,402.02 |
|
|
| 12 | M-673010935 | Rh Bracket And Screw |
$46.54 |
|
|
| 14 | M-673001646 | Bleeder Screw |
$30.43 |
|
|
| 15 | M-673010932 | Spring And Pins Kit |
$113.45 |
|
