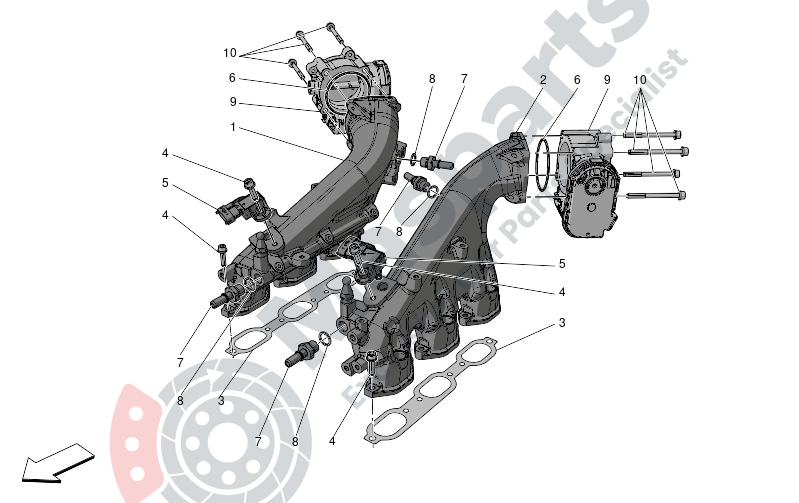

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054056 | Rh Intake Manifold Assembly |
$521.16 |
|
|
| 2 | M-670054058 | Lh Intake Manifold Assembly |
$599.53 |
|
|
| 3 | M-670050628 | Gasket |
$9.78 |
|
|
| 4 | M-670051109 | Screw |
$2.08 |
|
|
| 5 | M-670053933 | Air Temp Sensor |
$93.72 |
|
|
| 6 | M-675001414 | O.R. Gasket |
$4.03 |
|
|
| 7 | M-670051436 | Union |
$5.87 |
|
|
| 8 | M-675000670 | Gasket |
$2.10 |
|
|
| 9 | M-670053248 | Throttle Body |
$533.90 |
|
|
| 10 | M-670051117 | Screw |
$2.43 |
|
