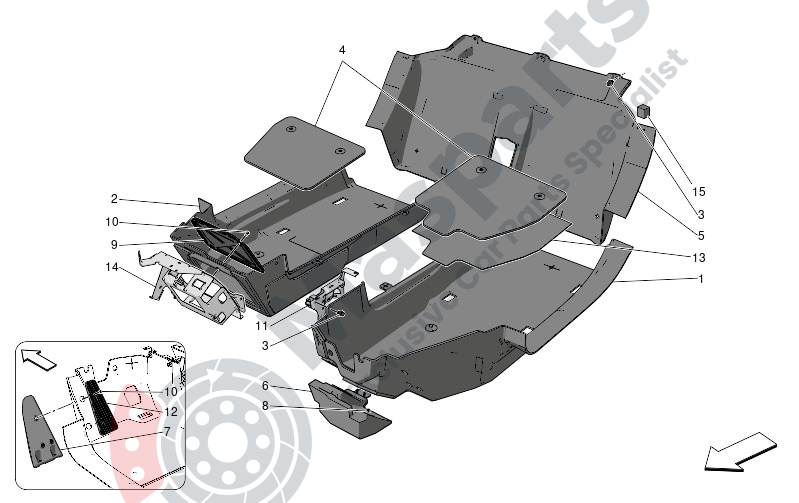

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-675000294 | Pin |
$2.48 |
|
|
| 6 | M-670161869 | Front Central Filler |
$84.09 |
|
|
| 7 | M-670161621 | Footrest Filler Lhd |
$78.13 |
|
|
| 8 | M-675000582 | Nut |
$1.25 |
|
|
| 9 | M-670156212 | Passenger Footrest |
$125.67 |
|
|
| 10 | M-670159552 | Screw |
$2.26 |
|
|
| 11 | M-670219105 | Bracket |
$80.57 |
|
|
| 13 | M-670156180 | Lh Front Carpert Protection |
$7.22 |
|
|
| 14 | M-670295678 | Bracket Step Support |
$117.19 |
|
|
| 15 | M-670300587 | Pad |
$9.91 |
|
