The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

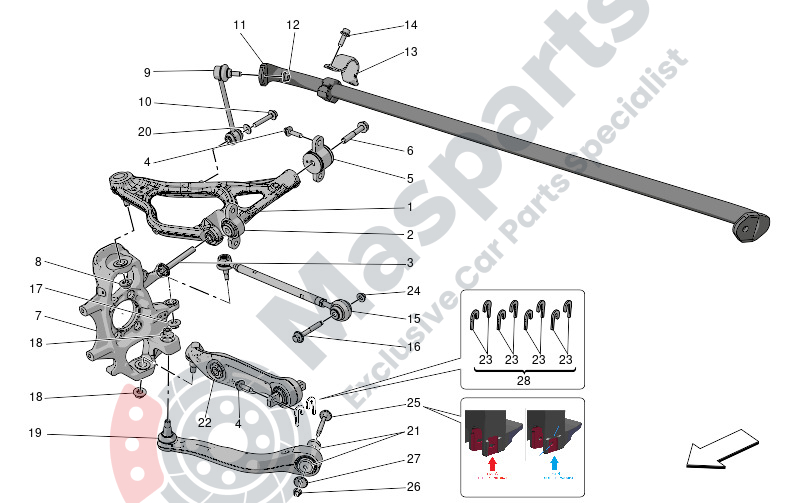

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670161646 | Rear Suspension Upper Arm |
$584.50 |
|
|
| 2 | M-670160347 | Bushing |
$77.18 |
|
|
| 3 | M-675000051 | Screw ˇ |
$2.68 |
|
|
| 4 | M-675001345 | Screw |
$2.23 |
|
|
| 5 | M-670160337 | Bushing |
$177.76 |
|
|
| 6 | M-675001196 | Screw |
$9.74 |
|
|
| 9 | M-670161850 | Ball Tie |
$71.80 |
|
|
| 10 | M-670160647 | Screw |
$4.83 |
|
|
| 11 | M-670156481 | Rear Stabilizer Bar |
$531.36 |
|
|
| 12 | M-675000184 | Nut |
$1.76 |
|
|
| 13 | M-675001071 | U-Bolt |
$13.75 |
|
|
| 14 | M-675001015 | Screw |
$1.76 |
|
|
| 15 | M-670216677 | Rear Toe-In Adjustment Rod |
$327.51 |
|
|
| 16 | M-675001020 | Screw |
$4.61 |
|
|
| 17 | M-675001193 | Nut |
$5.64 |
|
|
| 18 | M-675001188 | Nut |
$5.65 |
|
|
| 19 | M-670161836 | Lh Rear Swinging Arm |
$399.97 |
|
|
| 20 | M-670213189 | Washer |
$1.24 |
|
|
| 21 | M-670160632 | Spacer |
$17.75 |
|
|
| 22 | M-670160333 | Rh Axle Rod |
$255.05 |
|
|
| 23 | M-670160335 | Camber Adjustment Plate Thic |
$10.29 |
|
|
| 24 | M-675000127 | Nut |
$2.19 |
|
|
| 25 | M-675000051 | Screw ˇ |
$2.68 |
|
|
| 26 | M-675000023 | Nut |
$1.38 |
|
|
| 27 | M-670174098 | Washer |
$18.30 |
|
|
| 28 | M-673013880 | Kit Camber Adjustment Plates |
$1,223.10 |
|
