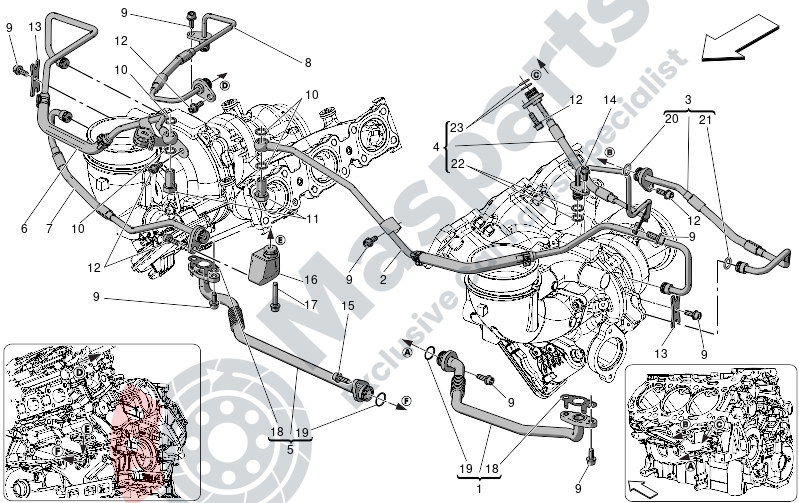

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670053922 | Oil Recovery Pipe From Lh Tu |
$100.24 |
|
|
| 2 | M-670053472 | Water Return Pipe From Lh Tu |
$181.20 |
|
|
| 3 | M-670053469 | Water Delivery Pipe To Lh Tu |
$133.97 |
|
|
| 4 | M-670053473 | Oil Delivery Pipe To Lh Turb |
$155.17 |
|
|
| 5 | M-670053921 | Oil Recovery Pipe From Rh Tu |
$92.72 |
|
|
| 6 | M-670053471 | Water Return Pipe From Rh Tu |
$166.74 |
|
|
| 7 | M-670053466 | Water Delivery Pipe To Rh Tu |
$116.62 |
|
|
| 8 | M-670053470 | Oil Delivery Pipe To Rh Turb |
$159.03 |
|
|
| 9 | M-670051105 | Screw |
$2.39 |
|
|
| 10 | M-670054413 | Gasket |
$1.98 |
|
|
| 11 | M-670050209 | Filler Neck |
$5.35 |
|
|
| 12 | M-670051106 | Screw |
$2.29 |
|
|
| 13 | M-670050157 | Fork |
$5.34 |
|
|
| 14 | M-670051104 | Screw |
$2.21 |
|
|
| 15 | M-670051109 | Screw |
$2.04 |
|
|
| 16 | M-670054362 | Block |
$48.71 |
|
|
| 17 | M-670051111 | Screw |
$2.04 |
|
|
| 18 | M-271457 | Gasket On Oil Drain Pipe |
$3.50 |
|
|
| 19 | M-287722 | O-R Gasket |
$2.34 |
|
|
| 21 | M-127816 | O-R Gasket |
$2.34 |
|
|
| 22 | M-191269 | Gasket |
$2.95 |
|
