The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

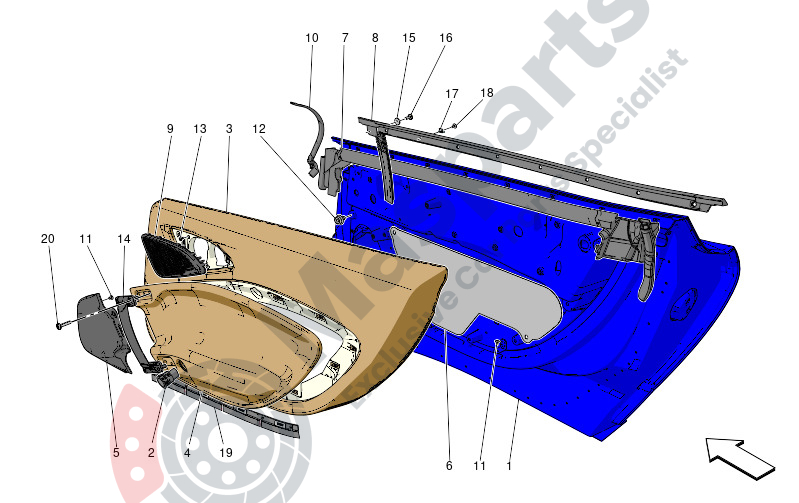

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 6 | M-670158130 | Rh Water Shield |
$42.82 |
|
|
| 7 | M-670299260 | Rh Front Inner Glass Scraper |
$234.72 |
|
|
| 8 | M-670295911 | Rh Front Outer Glass Scraper |
$223.24 |
|
|
| 10 | M-670158126 | Rh Front Door Gasket |
$126.23 |
|
|
| 11 | M-675001294 | Screw Hsh |
$1.77 |
|
|
| 12 | M-675001325 | Pin |
$0.98 |
|
|
| 13 | M-670006421 | Screw M4X12 |
$1.50 |
|
|
| 15 | M-675001364 | Washer |
$1.56 |
|
|
| 17 | M-675001328 | Fastening Block |
$1.71 |
|
|
| 18 | M-675001329 | Screw |
$1.22 |
|
|
| 19 | M-670177380 | Front Rh Door Air Duct Plate |
$93.61 |
|
|
| 20 | M-670214223 | Screw |
$3.03 |
|
