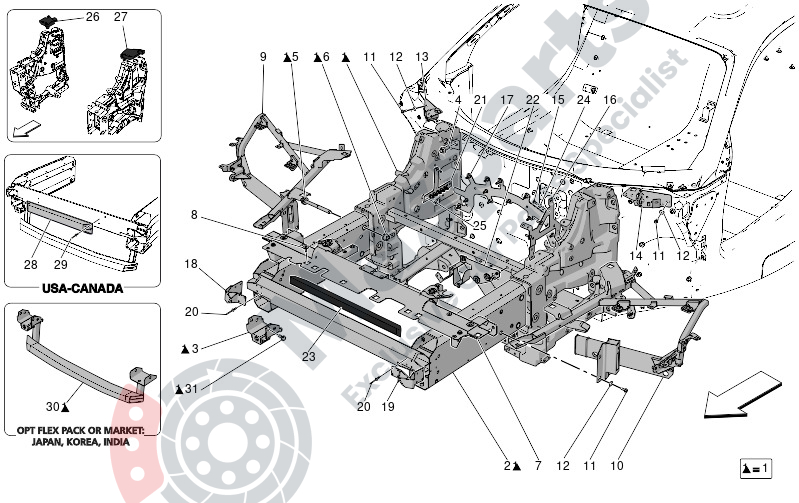

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670215691 | Front Bar |
$433.37 |
|
|
| 4 | M-675001391 | Screw |
$29.08 |
|
|
| 5 | M-670035577 | Screw ˇ |
$7.31 |
|
|
| 6 | M-675000584 | Nut |
$5.82 |
|
|
| 7 | M-670156844 | Front Cross Piece Member |
$577.83 |
|
|
| 8 | M-675001255 | Screw |
$1.77 |
|
|
| 9 | M-670156834 | Rh Front Fender Bracket |
$634.80 |
|
|
| 10 | M-670156835 | Lh Front Fender Bracket |
$634.80 |
|
|
| 11 | M-670214297 | Screw |
$2.45 |
|
|
| 12 | M-670214353 | Washer |
$1.71 |
|
|
| 13 | M-670214025 | Bracket |
$42.62 |
|
|
| 14 | M-670214026 | Bracket |
$42.62 |
|
|
| 15 | M-675001938 | Screw |
$1.46 |
|
|
| 16 | M-670174033 | Ground Cable Bracket |
$52.22 |
|
|
| 17 | M-670298535 | Bracket |
$76.06 |
|
|
| 21 | M-670214176 | Bracket |
$81.24 |
|
|
| 22 | M-670292916 | Bracket |
$80.47 |
|
|
| 23 | M-670176383 | Gasket |
$71.73 |
|
|
| 24 | M-675001253 | Washer |
$1.79 |
|
|
| 25 | M-675001053 | Screw |
$1.57 |
|
|
| 26 | M-670217276 | Pad |
$791.63 |
|
|
| 27 | M-670217277 | Pad |
$791.63 |
|
|
| 30 | M-670173627 | Lower Cross Member |
$346.70 |
|
|
| 31 | M-675001400 | Screw |
$1.51 |
|
