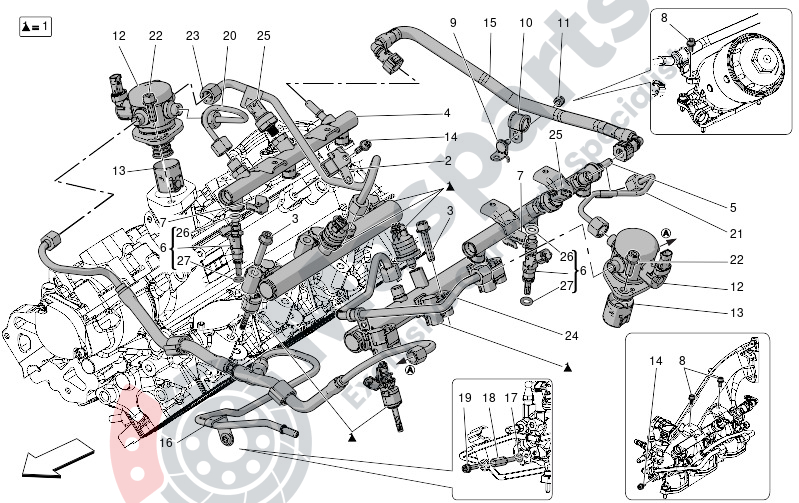

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054352 | Complete Rail |
$1,438.09 |
|
|
| 2 | M-670053155 | Bracket |
$32.16 |
|
|
| 3 | M-670053443 | Screw |
$3.99 |
|
|
| 4 | M-670053175 | Rh Low Pressure Fuel Pipe |
$288.99 |
|
|
| 5 | M-670053176 | Lh Low Pressure Fuel Pipe |
$332.09 |
|
|
| 6 | M-670052434 | Injector Assembly |
$78.06 |
|
|
| 7 | M-670052698 | Clip |
$13.84 |
|
|
| 8 | M-670051104 | Screw |
$2.25 |
|
|
| 9 | M-670053146 | Bracket |
$21.29 |
|
|
| 10 | M-675001412 | Bracket With Sheath |
$3.16 |
|
|
| 11 | M-675001413 | Nut |
$2.01 |
|
|
| 12 | M-670053151 | Fuel Pump |
$470.22 |
|
|
| 13 | M-670052831 | Bowl |
$30.85 |
|
|
| 14 | M-670051106 | Screw |
$2.33 |
|
|
| 15 | M-670053228 | Low Pressure Fuel Connection |
$66.61 |
|
|
| 16 | M-670053229 | Low Pressure Fuel Pipe |
$237.07 |
|
|
| 17 | M-675000106 | Washer |
$1.63 |
|
|
| 18 | M-670050169 | Screw |
$13.84 |
|
|
| 19 | M-670051108 | Screw |
$2.30 |
|
|
| 20 | M-670053355 | Rh Low Pressure Fuel Pipe |
$37.26 |
|
|
| 21 | M-670054148 | Tube |
$35.56 |
|
|
| 22 | M-670051450 | Screw |
$2.63 |
|
|
| 23 | M-670053153 | Rh Rail-Pump High-Pressure F |
$49.18 |
|
|
| 24 | M-670053369 | Lh Rail-Pump High-Pressure F |
$49.66 |
|
|
| 25 | M-670052629 | Pressure Sensor |
$90.10 |
|
|
| 26 | M-673015364 | O Ring Injector Superior |
$14.75 |
|
|
| 27 | M-673015365 | O Ring Injector Low |
$6.10 |
|
