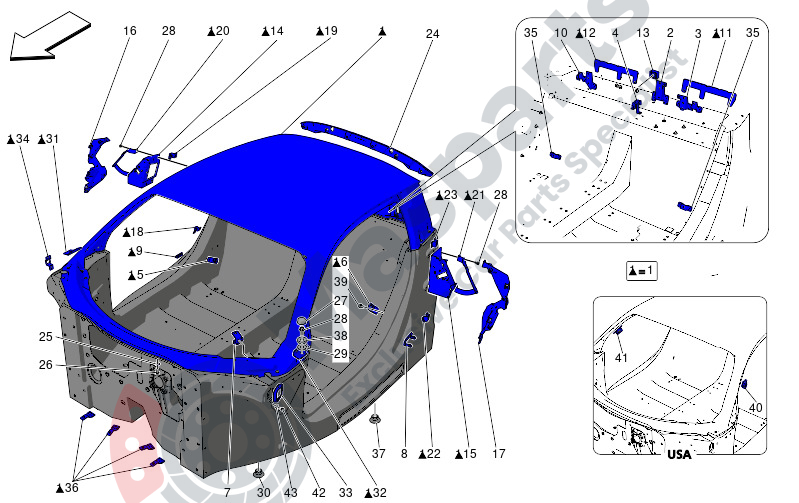

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670162169 | Bracket |
$43.75 |
|
|
| 3 | M-670162174 | Bracket |
$47.65 |
|
|
| 4 | M-670162170 | Bracket |
$49.17 |
|
|
| 5 | M-670160196 | Rh Side Bracket |
$24.59 |
|
|
| 6 | M-670176089 | Lh Side Bracket |
$18.52 |
|
|
| 7 | M-670162237 | L.H. Insert |
$23.08 |
|
|
| 8 | M-670181246 | Bracket |
$45.38 |
|
|
| 9 | M-670219976 | Plate |
$20.90 |
|
|
| 10 | M-670162168 | Bracket |
$47.65 |
|
|
| 11 | M-670298541 | Lh Bracket |
$52.10 |
|
|
| 12 | M-670298540 | Rh Bracket |
$52.10 |
|
|
| 13 | M-670160180 | Reinforcement |
$36.27 |
|
|
| 14 | M-670160174 | Rh Door Lock Reinforcement |
$64.84 |
|
|
| 15 | M-670160175 | Lh Door Lock Reinforcement |
$71.34 |
|
|
| 16 | M-670160201 | Rh Fender Reinforcement |
$464.99 |
|
|
| 17 | M-670160202 | Lh Fender Reinforcement |
$464.99 |
|
|
| 18 | M-670162166 | Rh Fender Bracket |
$31.73 |
|
|
| 19 | M-670162167 | Rh Side Connection Bracket |
$31.73 |
|
|
| 20 | M-670295913 | Rh Rear Door Lock Reinforcem |
$24.85 |
|
|
| 21 | M-670295914 | Lh Rear Door Lock Reinforcem |
$24.85 |
|
|
| 22 | M-670176091 | Lh Fender Bracket |
$31.73 |
|
|
| 23 | M-670176092 | Lh Side Connection Bracket |
$31.73 |
|
|
| 24 | M-670160257 | Cross Member |
$59.84 |
|
|
| 25 | M-675001364 | Washer |
$1.57 |
|
|
| 26 | M-675001355 | Screw |
$2.22 |
|
|
| 27 | M-675001373 | Cap 17X10.5 |
$3.73 |
|
|
| 28 | M-670213828 | Screw M10X1.5 |
$18.41 |
|
|
| 29 | M-675001366 | Flat Washer |
$4.66 |
|
|
| 30 | M-670214549 | Plug |
$18.20 |
|
|
| 31 | M-670213171 | Rh Windshield Reinforcment |
$40.02 |
|
|
| 32 | M-670213172 | Lh Windshield Reinforcment |
$40.02 |
|
|
| 33 | M-670295539 | Plate |
$50.78 |
|
|
| 34 | M-670162247 | Upper Rh Support |
$21.65 |
|
|
| 35 | M-670174187 | Bracket |
$38.24 |
|
|
| 36 | M-670214616 | Lower Cover Support Bracket |
$21.03 |
|
|
| 37 | M-670214548 | Plug |
$18.20 |
|
|
| 38 | M-670215817 | Spacer |
$1.36 |
|
|
| 39 | M-675001947 | Screw With Washer |
$3.34 |
|
|
| 42 | M-675001028 | Fastener Button |
$1.97 |
|
