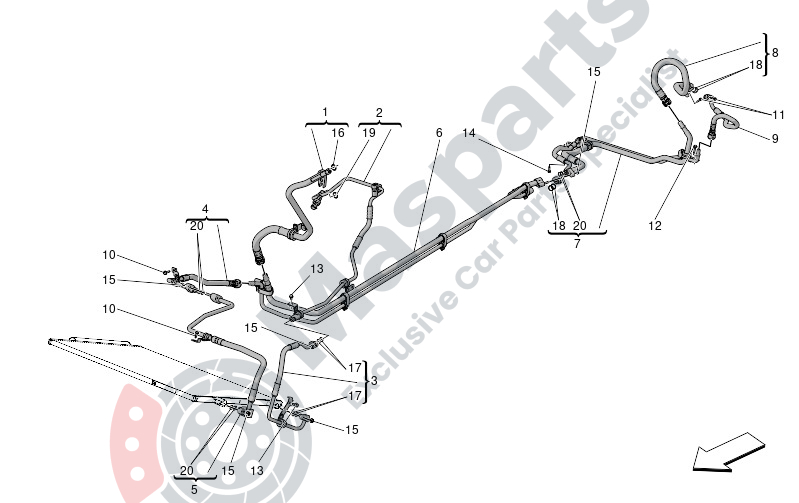

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670175330 | Flexible Pipe |
$257.62 |
|
|
| 2 | M-670214681 | Flexible Pipe |
$203.12 |
|
|
| 3 | M-670175351 | Pipe Between Condenser And J |
$129.80 |
|
|
| 4 | M-670175333 | Flexible Pipe |
$137.73 |
|
|
| 5 | M-670175332 | Hose Fitting Rear Hvac |
$169.43 |
|
|
| 6 | M-670182007 | Pipe |
$203.12 |
|
|
| 7 | M-670175335 | Flexible Pipe |
$242.76 |
|
|
| 8 | M-670175334 | Second Section Flexible Pipe |
$137.73 |
|
|
| 9 | M-670175355 | Flexible Pipe |
$119.89 |
|
|
| 10 | M-675001232 | Screw |
$7.05 |
|
|
| 11 | M-675001211 | Screw |
$7.05 |
|
|
| 12 | M-675001356 | Screw |
$10.00 |
|
|
| 13 | M-675001308 | Screw |
$7.05 |
|
|
| 14 | M-675001402 | Screw |
$7.05 |
|
|
| 15 | M-675001307 | Nut |
$1.13 |
|
|
| 16 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.40 |
|
|
| 17 | M-675000119 | O-Ring 68X187 |
$2.01 |
|
|
| 18 | M-675000306 | O-Ring 136X243 |
$1.97 |
|
|
| 19 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.31 |
|
|
| 20 | M-675001987 | O Ring |
$8.00 |
|
