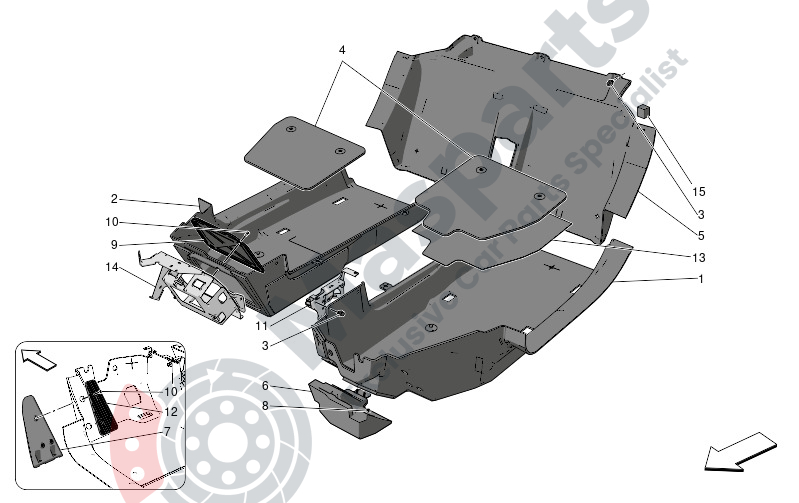

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-675000294 | Pin |
$2.51 |
|
|
| 6 | M-670161869 | Front Central Filler |
$85.22 |
|
|
| 7 | M-670161621 | Footrest Filler Lhd |
$79.17 |
|
|
| 8 | M-675000582 | Nut |
$1.27 |
|
|
| 9 | M-670156212 | Passenger Footrest |
$127.35 |
|
|
| 10 | M-670159552 | Screw |
$2.29 |
|
|
| 11 | M-670219105 | Bracket |
$81.64 |
|
|
| 13 | M-670156180 | Lh Front Carpert Protection |
$7.32 |
|
|
| 14 | M-670216781 | Bracket Step Support |
$116.63 |
|
|
| 15 | M-670300587 | Pad |
$10.04 |
|
