The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

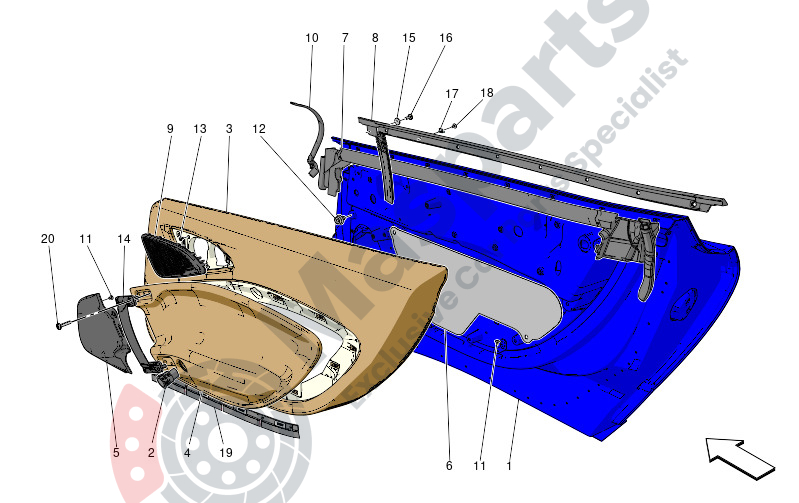

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670219621 | Rh Front Carbon Door |
$24,045.61 |
|
|
| 6 | M-670158130 | Rh Water Shield |
$42.11 |
|
|
| 7 | M-670157883 | Rh Front Inner Glass Scraper |
$230.83 |
|
|
| 8 | M-670295911 | Rh Front Outer Glass Scraper |
$219.54 |
|
|
| 10 | M-670158126 | Rh Front Door Gasket |
$124.13 |
|
|
| 11 | M-675001294 | Screw Hsh |
$1.74 |
|
|
| 12 | M-675001325 | Pin |
$0.96 |
|
|
| 13 | M-670006421 | Screw M4X12 |
$1.47 |
|
|
| 15 | M-675001257 | Washer 6X18 |
$1.64 |
|
|
| 16 | M-675001383 | Screw |
$3.47 |
|
|
| 17 | M-675001328 | Fastening Block |
$1.68 |
|
|
| 18 | M-675001329 | Screw |
$1.20 |
|
|
| 19 | M-670177380 | Front Rh Door Air Duct Plate |
$92.06 |
|
|
| 20 | M-670214223 | Screw |
$2.98 |
|
