The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

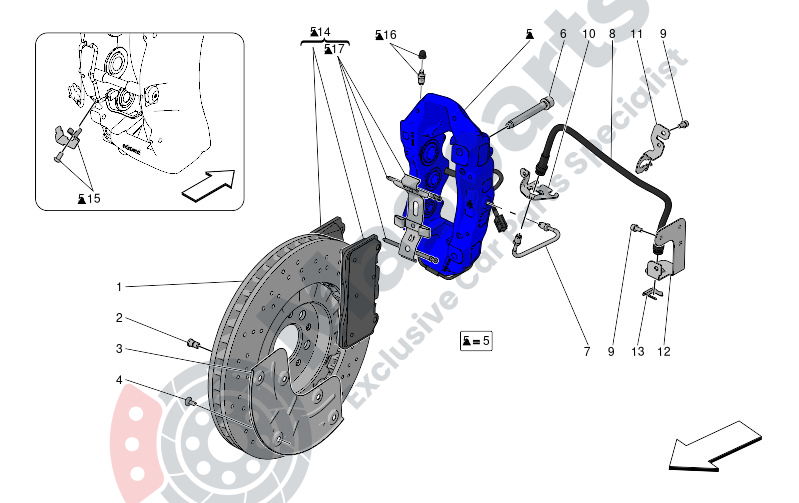

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670220502 | Front Brake Disc |
$526.05 |
|
|
| 2 | M-675000081 |
Screw
|
$4.92 |
|
|
| 3 | M-670220160 | Brake Disc Shield |
$53.20 |
|
|
| 4 | M-675001032 | Screw |
$1.24 |
|
|
| 6 | M-675001192 | Screw |
$4.87 |
|
|
| 7 | M-670295491 | Rh Tube |
$28.62 |
|
|
| 8 | M-670178636 | Pipe |
$33.59 |
|
|
| 9 | M-675000172 | Screw |
$0.98 |
|
|
| 10 | M-670161084 | Bracket |
$29.30 |
|
|
| 11 | M-670161122 | Bracket |
$26.02 |
|
|
| 12 | M-670156497 | Bracket |
$42.99 |
|
|
| 13 | M-675000276 | Plate |
$0.94 |
|
|
| 14 | M-673013776 | Front Pads Kit |
$685.79 |
|
|
| 15 | M-673010935 | Rh Bracket And Screw |
$45.03 |
|
|
| 16 | M-673010933 | Bleeder Screw And Plug |
$56.13 |
|
|
| 17 | M-673013777 | Spring And Pins Kit |
$109.77 |
|
