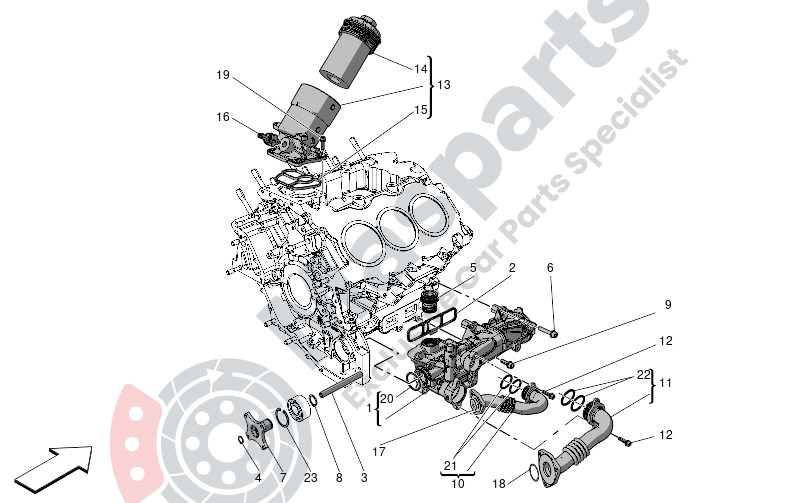

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054149 | Oil Pump Assembly |
$2,527.12 |
|
|
| 2 | M-670052952 | Engine Oil Pump Seal |
$56.90 |
|
|
| 3 | M-670053356 | Oil Pump Control Bar |
$26.09 |
|
|
| 4 | M-675001417 | Seeger |
$1.24 |
|
|
| 5 | M-670053697 | Non-Return Valve |
$65.31 |
|
|
| 6 | M-670053443 | Screw |
$3.92 |
|
|
| 7 | M-670050013 | Oil Pump Shaft Coupling |
$75.20 |
|
|
| 8 | M-675001404 | Seeger |
$1.34 |
|
|
| 9 | M-670051450 | Screw |
$2.59 |
|
|
| 10 | M-670177016 | Oil Reservoir Feed Tube |
$133.97 |
|
|
| 11 | M-670177017 | Oil Delivery Pipe To Engine |
$95.17 |
|
|
| 12 | M-670051107 | Screw |
$1.85 |
|
|
| 13 | M-670053958 | Oil Filter |
$213.97 |
|
|
| 14 | M-670052849 | Oil Filter Cartridge |
$57.36 |
|
|
| 15 | M-670050119 | Engine Oil Filter Gasket |
$24.61 |
|
|
| 16 | M-670053348 | Oil Pressure Sensor |
$88.99 |
|
|
| 17 | M-675001199 | Gasket |
$11.24 |
|
|
| 18 | M-675001201 | Gasket |
$10.91 |
|
|
| 19 | M-670051108 | Screw |
$2.27 |
|
|
| 20 | M-673014039 | Oring |
$33.37 |
|
|
| 21 | M-673014518 | O-Ring |
$11.88 |
|
|
| 22 | M-673014519 | O-Ring |
$14.04 |
|
|
| 23 | M-11060276 | Seeger Ring |
$1.71 |
|
