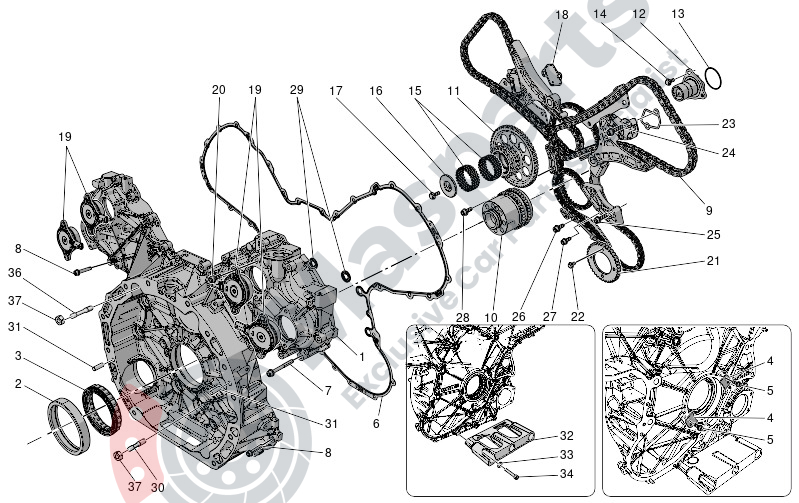

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670053770 | Complete Timing Cover |
€1.407,60 |
|
|
| 2 | M-670051267 | Gasket |
€26,40 |
|
|
| 3 | M-670050460 | Bearing |
€199,75 |
|
|
| 4 | M-670051042 | Bearing Plate |
€8,83 |
|
|
| 5 | M-670050026 | Screw |
€2,20 |
|
|
| 7 | M-670051115 | Screw |
€1,93 |
|
|
| 8 | M-670051111 | Screw |
€1,74 |
|
|
| 9 | M-670053347 | Timing Control Assy |
€724,96 |
|
|
| 10 | M-670053926 | Crankshaft Gear |
€243,95 |
|
|
| 11 | M-670053953 | Crankshaft Gear |
€227,80 |
|
|
| 12 | M-670050184 | Support |
€79,82 |
|
|
| 13 | M-670050416 | O-Ring |
€2,09 |
|
|
| 14 | M-670050158 | Screw |
€6,99 |
|
|
| 15 | M-670050109 | Bearing Cage |
€11,22 |
|
|
| 16 | M-670050185 | Bearing Spacer |
€12,42 |
|
|
| 17 | M-670050158 | Screw |
€6,99 |
|
|
| 18 | M-670050993 | Spacer |
€1,55 |
|
|
| 19 | M-670053475 | Variable Valve Actuator |
€76,76 |
|
|
| 20 | M-670051106 | Screw |
€1,88 |
|
|
| 21 | M-670053954 | Oil Pump Gear |
€65,79 |
|
|
| 22 | M-670050159 | Screw |
€4,28 |
|
|
| 23 | M-670050999 | Gasket |
€2,30 |
|
|
| 24 | M-670050150 | Screw |
€2,20 |
|
|
| 25 | M-670050020 | Screw |
€2,20 |
|
|
| 26 | M-670050148 | Screw |
€2,20 |
|
|
| 27 | M-670050147 | Screw |
€2,20 |
|
|
| 28 | M-670050149 | Screw |
€2,20 |
|
|
| 29 | M-670051123 | Gasket |
€6,53 |
|
|
| 30 | M-670050141 | Rivet |
€23,28 |
|
|
| 31 | M-675001406 | Stud |
€3,39 |
|
|
| 32 | M-670053939 | Bar |
€316,20 |
|
|
| 33 | M-670051322 | Washer |
€1,99 |
|
|
| 34 | M-670053870 | Screw |
€4,08 |
|
|
| 36 | M-670050140 | Rivet |
€21,44 |
|
