Diagram image not available

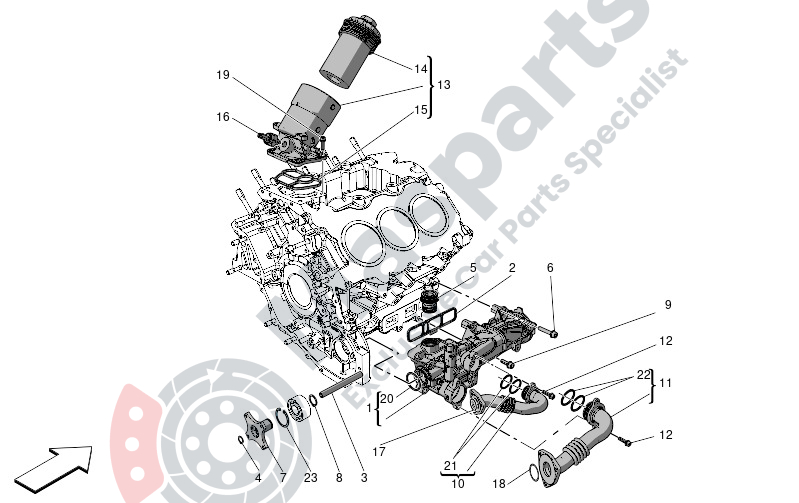

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054149 | Oil Pump Assembly |
$2,559.88 |
|
|
| 2 | M-670052952 | Engine Oil Pump Seal |
$57.63 |
|
|
| 3 | M-670053356 | Oil Pump Control Bar |
$26.43 |
|
|
| 4 | M-675001417 | Seeger |
$1.25 |
|
|
| 5 | M-670053697 | Non-Return Valve |
$66.16 |
|
|
| 6 | M-670053443 | Screw |
$3.97 |
|
|
| 7 | M-670050013 | Oil Pump Shaft Coupling |
$76.18 |
|
|
| 8 | M-675001404 | Seeger |
$1.35 |
|
|
| 9 | M-670051450 | Screw |
$2.62 |
|
|
| 10 | M-670177016 | Oil Reservoir Feed Tube |
$135.71 |
|
|
| 11 | M-670177017 | Oil Delivery Pipe To Engine |
$96.40 |
|
|
| 12 | M-670051107 | Screw |
$1.87 |
|
|
| 13 | M-670053958 | Oil Filter |
$216.74 |
|
|
| 14 | M-670052849 | Oil Filter Cartridge |
$58.10 |
|
|
| 15 | M-670050119 | Engine Oil Filter Gasket |
$24.93 |
|
|
| 16 | M-670053348 | Oil Pressure Sensor |
$90.15 |
|
|
| 17 | M-675001199 | Gasket |
$11.38 |
|
|
| 18 | M-675001201 | Gasket |
$11.05 |
|
|
| 19 | M-670051108 | Screw |
$2.29 |
|
|
| 20 | M-673014039 | Oring |
$33.80 |
|
|
| 21 | M-673014518 | O-Ring |
$12.04 |
|
|
| 22 | M-673014519 | O-Ring |
$14.22 |
|
|
| 23 | M-11060276 | Seeger Ring |
$1.73 |
|
