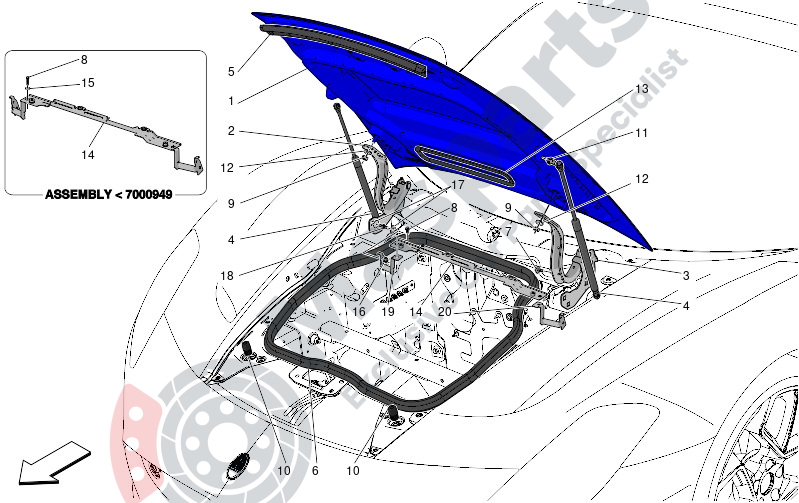

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670174354 | Front Bonnet Rh Hinge |
$86.94 |
|
|
| 3 | M-670174355 | Front Bonnet Lh Hinge |
$86.94 |
|
|
| 4 | M-670158236 | Bonnet Gas Spring |
$70.36 |
|
|
| 5 | M-670294504 | Engine Bonnet Gasket |
$157.65 |
|
|
| 6 | M-670301710 | Gasket |
$121.19 |
|
|
| 7 | M-675001061 | Screw |
$1.63 |
|
|
| 8 | M-675001252 | Screw |
$2.57 |
|
|
| 9 | M-670181904 | Nut |
$3.54 |
|
|
| 10 | M-675000410 | Lh Rawplug |
$6.60 |
|
|
| 11 | M-675000559 | Ball Pin |
$7.08 |
|
|
| 12 | M-675001258 | Washer |
$3.78 |
|
|
| 13 | M-670214837 | Gasket |
$28.98 |
|
|
| 14 | M-670297603 | Lower Cross Member |
$86.50 |
|
|
| 16 | M-670030861 | Flanged Nut |
$1.54 |
|
|
| 17 | M-670219268 | Washer |
$2.66 |
|
|
| 18 | M-675001938 | Screw |
$1.50 |
|
|
| 19 | M-670297601 | Rh Lower Trim |
$101.07 |
|
|
| 20 | M-670297602 | Lh Lower Trim |
$101.07 |
|
