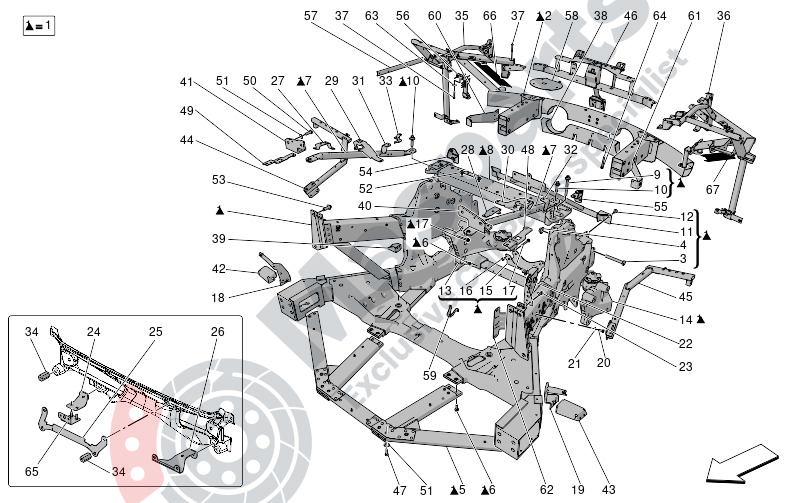

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670158329 | Rear Frame |
$9,793.27 |
|
|
| 2 | M-670216672 | Rear Crash Box Bar |
$1,042.33 |
|
|
| 3 | M-670173670 | Screw |
$14.23 |
|
|
| 4 | M-675000082 | Nut |
$4.38 |
|
|
| 5 | M-670216673 | Fuel Bracket |
$608.60 |
|
|
| 6 | M-670176387 | Screw |
$16.37 |
|
|
| 7 | M-670173635 | Tie Rod |
$73.63 |
|
|
| 8 | M-670173636 | Cross Member |
$844.90 |
|
|
| 9 | M-670173669 | Screw |
$31.45 |
|
|
| 10 | M-675001345 | Screw |
$2.23 |
|
|
| 11 | M-670173637 | Bracket |
$323.68 |
|
|
| 12 | M-675000174 | Screw |
$1.65 |
|
|
| 13 | M-670173638 | Bracket |
$696.60 |
|
|
| 14 | M-670173640 | Bracket |
$696.60 |
|
|
| 15 | M-670173642 | Bracket |
$92.70 |
|
|
| 16 | M-675001182 | Nut |
$3.58 |
|
|
| 17 | M-670173681 | Screw |
$32.71 |
|
|
| 18 | M-670160258 | Rh Side Member |
$98.72 |
|
|
| 19 | M-670160259 | Lh Side Member |
$98.72 |
|
|
| 20 | M-675001355 | Screw |
$2.22 |
|
|
| 21 | M-675001364 | Washer |
$1.57 |
|
|
| 22 | M-670158009 | Relays And Fuses Case |
$42.05 |
|
|
| 23 | M-675001384 | Screw |
$1.41 |
|
|
| 24 | M-670177633 | Bracket |
$22.87 |
|
|
| 25 | M-670177634 | Bracket |
$27.54 |
|
|
| 26 | M-670177635 | Bracket |
$26.56 |
|
|
| 27 | M-670177636 | Bracket |
$24.18 |
|
|
| 28 | M-670177637 | Bracket |
$24.18 |
|
|
| 29 | M-670219339 | Bracket |
$38.44 |
|
|
| 30 | M-670219340 | Bracket |
$38.44 |
|
|
| 31 | M-670177641 | Bracket |
$12.44 |
|
|
| 32 | M-670177642 | Bracket |
$12.44 |
|
|
| 33 | M-670177643 | Bracket |
$18.22 |
|
|
| 34 | M-670177644 | Spacer |
$7.38 |
|
|
| 37 | M-675001398 | Screw He M6X50 |
$1.24 |
|
|
| 39 | M-670174695 | Rear Lower Report |
$47.89 |
|
|
| 40 | M-670173644 | Bracket |
$57.03 |
|
|
| 41 | M-670173643 | Bracket |
$57.03 |
|
|
| 42 | M-670215578 | Insert |
$52.47 |
|
|
| 43 | M-670215535 | Insert |
$52.47 |
|
|
| 44 | M-670174461 | Insert |
$120.51 |
|
|
| 45 | M-670174463 | Insert |
$121.94 |
|
|
| 46 | M-670156858 | Rear Cross Member |
$274.45 |
|
|
| 47 | M-675001456 | Screw |
$5.92 |
|
|
| 48 | M-670213032 | Plate |
$30.36 |
|
|
| 49 | M-670213031 | Plate |
$30.36 |
|
|
| 50 | M-675001346 | Screw |
$12.04 |
|
|
| 51 | M-675001347 | Washer |
$2.94 |
|
|
| 52 | M-670213280 | Remote Start Antenna Bracket |
$27.54 |
|
|
| 53 | M-675001391 | Screw |
$29.23 |
|
|
| 54 | M-670174706 | Rh Spring Seal Bracket |
$52.16 |
|
|
| 55 | M-670174707 | Bracket |
$52.16 |
|
|
| 56 | M-670213864 | Bracket |
$84.95 |
|
|
| 58 | M-670174750 | Rear Crossbar Plate |
$19.28 |
|
|
| 59 | M-670174697 | Lh Strut Report |
$34.76 |
|
|
| 60 | M-670174699 | Rear Rh Locary Fixing Supp B |
$47.38 |
|
|
| 61 | M-670174700 | Rear Lh Locary Fixing Supp B |
$47.38 |
|
|
| 62 | M-670158010 | Relays And Fuses Case |
$35.68 |
|
|
| 63 | M-675001253 | Washer |
$1.80 |
|
|
| 65 | M-670215523 | Bracket |
$37.30 |
|
|
| 66 | M-670306937 | Rh Black Protective Film |
$35.02 |
|
|
| 67 | M-670306938 | Lh Black Protective Film |
$35.02 |
|
