The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

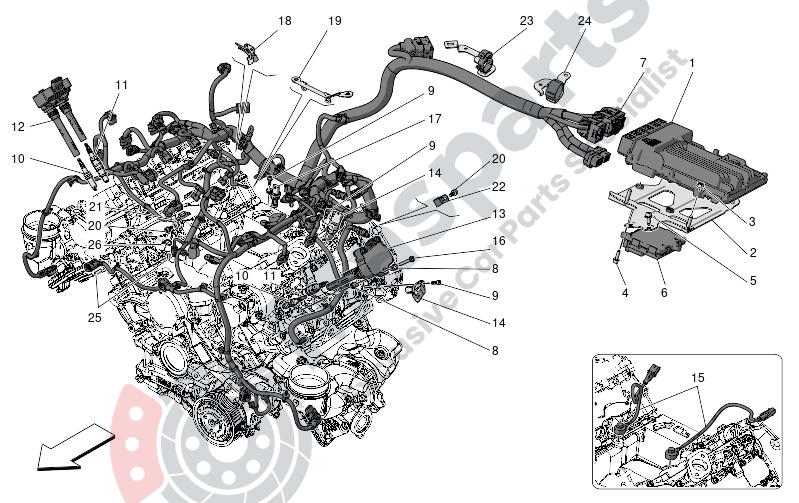

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670174005 | Ignition Control Unit |
$492.23 |
|
|
| 2 | M-670157007 | Control Unit Fixing Bracket |
$71.62 |
|
|
| 3 | M-675000969 | Nut |
$1.00 |
|
|
| 4 | M-675001312 | Screw |
$2.68 |
|
|
| 5 | M-670051107 | Screw |
$1.90 |
|
|
| 6 | M-670173066 | Control Module |
$1,210.02 |
|
|
| 7 | M-670054044 | Injection Harness |
$1,633.08 |
|
|
| 8 | M-670053737 | Bushing |
$9.11 |
|
|
| 9 | M-670051106 | Screw |
$2.36 |
|
|
| 10 | M-670053696 | Spark Plug |
$22.64 |
|
|
| 11 | M-670053816 | Antechamber Spark Plug |
$94.42 |
|
|
| 12 | M-670053658 | Rh. Head Side Ignition Coil |
$113.28 |
|
|
| 13 | M-670053659 | Lh. Head Side Ignition Coil |
$117.29 |
|
|
| 14 | M-670053936 | Timing Sensor |
$46.80 |
|
|
| 15 | M-670051424 | Sensor For Firing |
$81.50 |
|
|
| 16 | M-670053660 | Screw |
$3.05 |
|
|
| 17 | M-670054301 | Speed Sensor |
$73.18 |
|
|
| 18 | M-670053461 | Bracket |
$30.64 |
|
|
| 19 | M-670053321 | Bracket |
$28.19 |
|
|
| 20 | M-670051104 | Screw |
$2.27 |
|
|
| 21 | M-670051370 | Bracket |
$9.44 |
|
|
| 22 | M-670051479 | Bracket |
$10.66 |
|
|
| 23 | M-670181078 | Bracket |
$32.86 |
|
|
| 24 | M-670181077 | Bracket |
$29.42 |
|
|
| 25 | M-670050329 | Shell |
$3.73 |
|
|
| 26 | M-670051301 | Clip |
$24.52 |
|
