Diagram image not available

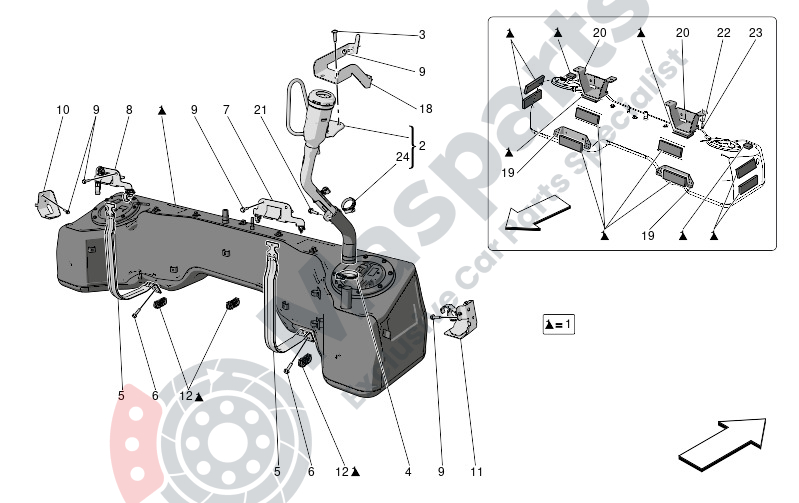

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670156462 | Fuel Filler Neck Assembly |
$536.96 |
|
|
| 3 | M-675001237 | Screw |
$1.94 |
|
|
| 4 | M-675001238 | Collar |
$2.23 |
|
|
| 5 | M-670156465 | Fuel Tank Fastening Strap |
$80.24 |
|
|
| 6 | M-675001233 | Screw |
$18.46 |
|
|
| 7 | M-670161673 | Rh. Fuel Tank Fastener Brack |
$123.47 |
|
|
| 8 | M-670161674 | Lh. Fuel Tank Fastener Brack |
$44.92 |
|
|
| 9 | M-675001382 | Screw |
$2.16 |
|
|
| 10 | M-670160736 | Lh Bracket |
$46.67 |
|
|
| 11 | M-670160733 | Rh Bracket |
$39.45 |
|
|
| 12 | M-670160796 | Clip |
$7.92 |
|
|
| 18 | M-670181511 | Bracket |
$39.93 |
|
|
| 19 | M-670162165 | Bracket |
$40.61 |
|
|
| 20 | M-670160199 | Bracket |
$47.28 |
|
|
| 21 | M-675001236 | Screw |
$1.36 |
|
|
| 22 | M-675001355 | Screw |
$2.22 |
|
|
| 23 | M-675001257 | Washer 6X18 |
$1.67 |
|
|
| 24 | M-675001965 | Hose Clamp |
$10.51 |
|
