Diagram image not available

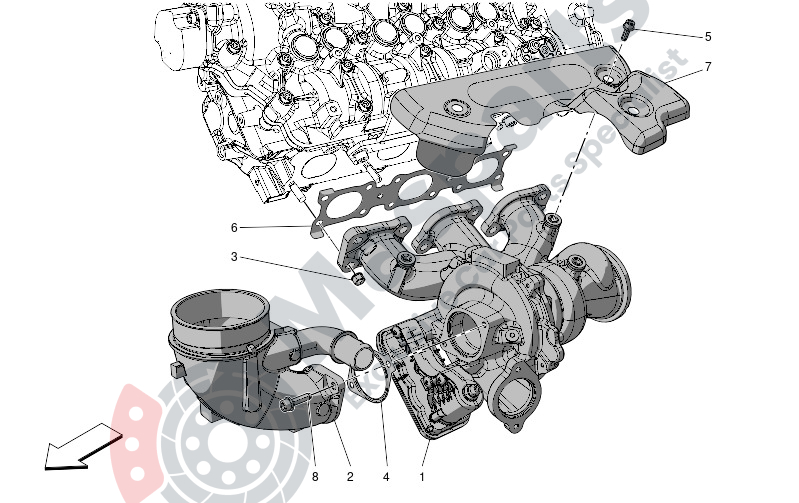

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670053865 | Rh Turbocharger |
$4,392.89 |
|
|
| 2 | M-670053967 | Pipe |
$337.76 |
|
|
| 3 | M-670050454 | Nut |
$3.83 |
|
|
| 4 | M-670050456 | Gasket |
$4.53 |
|
|
| 5 | M-670051106 | Screw |
$2.36 |
|
|
| 6 | M-670053635 | Exhaust Manifold Gasket |
$61.43 |
|
|
| 7 | M-670157015 | Rh Exhaust Manifold Heat Shi |
$96.21 |
|
|
| 8 | M-670051107 | Screw |
$1.90 |
|
