Diagram image not available

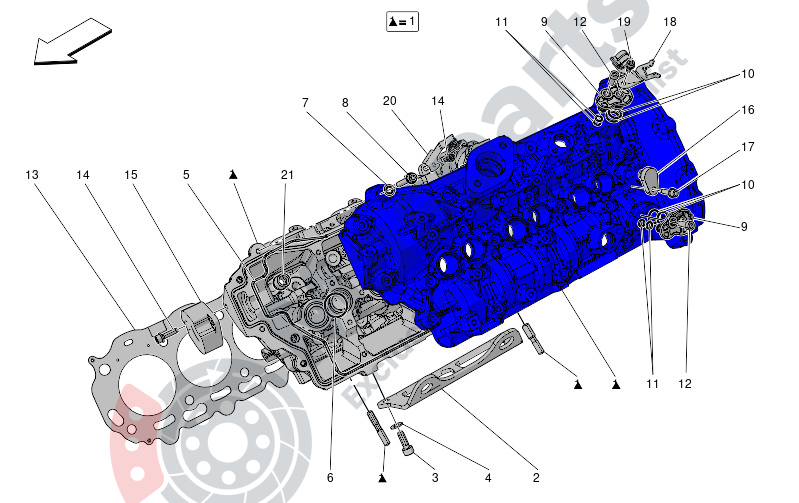

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670053971 | Bracket |
$45.74 |
|
|
| 3 | M-675001407 | Screw |
$19.30 |
|
|
| 4 | M-670051322 | Washer |
$2.33 |
|
|
| 5 | M-670053273 | Gasket |
$52.67 |
|
|
| 6 | M-675001408 | Seeger |
$1.12 |
|
|
| 7 | M-670051098 | Washer |
$3.87 |
|
|
| 8 | M-670050207 | Screw |
$2.40 |
|
|
| 9 | M-670050178 | Plug |
$13.85 |
|
|
| 10 | M-675001409 | Gasket |
$2.66 |
|
|
| 11 | M-675001410 | Gasket |
$1.66 |
|
|
| 12 | M-675001411 | Screw |
$1.10 |
|
|
| 13 | M-670052909 | Gasket |
$115.16 |
|
|
| 14 | M-670051108 | Screw |
$2.28 |
|
|
| 15 | M-670053366 | Lh Upper Strut |
$168.30 |
|
|
| 16 | M-670052851 | Support Flange |
$25.90 |
|
|
| 17 | M-675001312 | Screw |
$2.62 |
|
|
| 18 | M-670051368 | Bracket |
$7.92 |
|
|
| 19 | M-670051104 | Screw |
$2.22 |
|
|
| 20 | M-670051369 | Bracket |
$12.89 |
|
|
| 21 | M-670050120 | Nut |
$6.49 |
|
