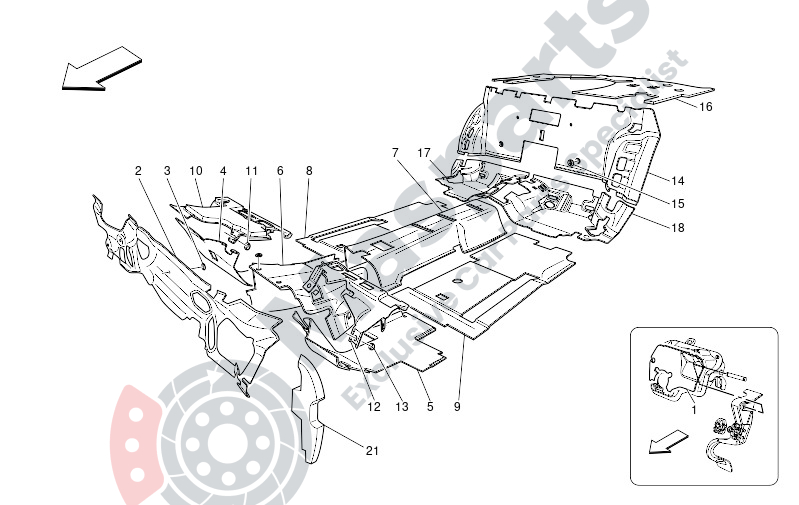

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-193886 | Pedal Silencer. |
€88,78 |
|
|
| 2 | M-67225100 | Front Insulation. |
€155,48 |
|
|
| 3 | M-81695900 | Fixing Button |
€1,46 |
|
|
| 4 | M-69189100 | R.H.Front Insulation |
€79,95 |
|
|
| 5 | M-69189200 | L.H.Front Insulation |
€80,59 |
|
|
| 6 | M-68381500 | Tunnel Front Insulation |
€77,00 |
|
|
| 7 | M-69189400 | Tunnel Rear Insulation |
€104,55 |
|
|
| 8 | M-68380900 | R.H.Rear Insulation |
€65,50 |
|
|
| 9 | M-68381000 | L.H.Rear Insulation |
€59,16 |
|
|
| 10 | M-80310400 | R.H.Silencer Dashboard |
€41,49 |
|
|
| 11 | M-81695900 | Fixing Button |
€1,46 |
|
|
| 12 | M-82076800 | L.H.Silencer Dashboard |
€37,08 |
|
|
| 13 | M-67640300 | Fixing Button |
€1,46 |
|
|
| 14 | M-68380300 | Rear Seat Back Insulation |
€129,72 |
|
|
| 15 | M-81695900 | Fixing Button |
€1,46 |
|
|
| 16 | M-68381100 | Rear Under Window Panel Insu |
€27,88 |
|
|
| 17 | M-80177900 | R.H.Seat Rear Insulation |
€74,72 |
|
|
| 18 | M-80178000 | L.H.Seat Rear Insulation |
€74,72 |
|
|
| 21 | M-80170900 | Rh External Latch Fr. Wheelh |
€35,14 |
|
