Diagram image not available

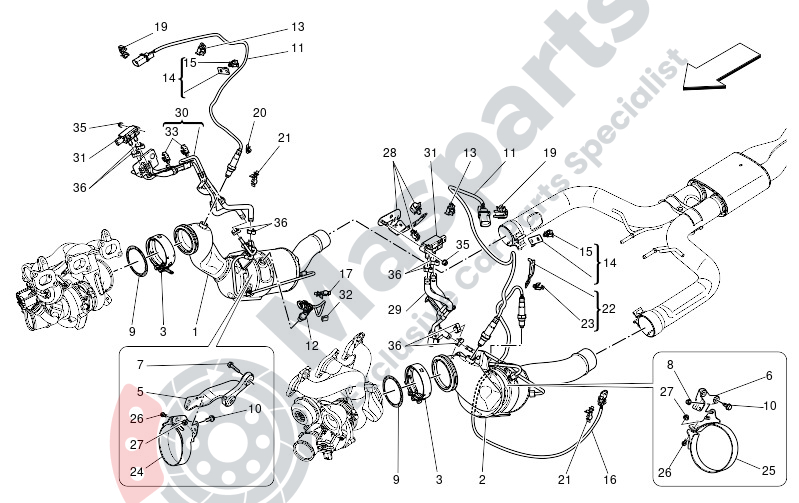

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670107530 | Hot-End Cpl.Ccgpf Rt |
$2,490.21 |
|
|
| 2 | M-670107529 | Hot-End Cpl.Ccgpf Lt |
$3,168.00 |
|
|
| 3 | M-675000060 | Collar |
$29.90 |
|
|
| 5 | M-670104958 | Rh Bracket |
$43.74 |
|
|
| 6 | M-670104957 | Lh Bracket |
$42.34 |
|
|
| 7 | M-675000397 | Screw |
$9.35 |
|
|
| 8 | M-675000779 | Nut |
$2.90 |
|
|
| 9 | M-675000052 | Gasket |
$8.73 |
|
|
| 10 | M-675000112 | Screw |
$2.45 |
|
|
| 11 | M-670214728 | Rh Front Lambda Sensor |
$114.29 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$125.31 |
|
|
| 13 | M-675000143 | Clip |
$1.00 |
|
|
| 14 | M-670005333 | Cpl Bracket |
$25.58 |
|
|
| 15 | M-675000134 | Clip |
$6.08 |
|
|
| 16 | M-670104045 | Rear Lambda Sensor |
$125.31 |
|
|
| 17 | M-675000143 | Clip |
$1.00 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.75 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.75 |
|
|
| 21 | M-675000143 | Clip |
$1.00 |
|
|
| 22 | M-670104048 | Bracket Assembly |
$14.74 |
|
|
| 24 | M-670108353 | Collar Bracket Lh Hot-End |
$145.85 |
|
|
| 25 | M-670108354 | Collar Bracket Rh Hot-End |
$54.78 |
|
|
| 26 | M-675000257 | Screw |
$6.16 |
|
|
| 27 | M-675000779 | Nut |
$2.90 |
|
|
| 28 | M-670107580 | Lh Pressure Sensor Bracket |
$25.95 |
|
|
| 29 | M-670105045 | Rigid Pipe Exhaust Gas Press |
$111.97 |
|
|
| 30 | M-670182471 | Rigid Pipe Exhaust Gas Pres |
$123.86 |
|
|
| 32 | M-670105160 | Retaining Clip |
$1.50 |
|
|
| 33 | M-675000076 | Clip |
$0.89 |
|
|
| 35 | M-14059211 | Nut |
$1.50 |
|
|
| 36 | M-675000369 | Strap Collar |
$1.73 |
|
