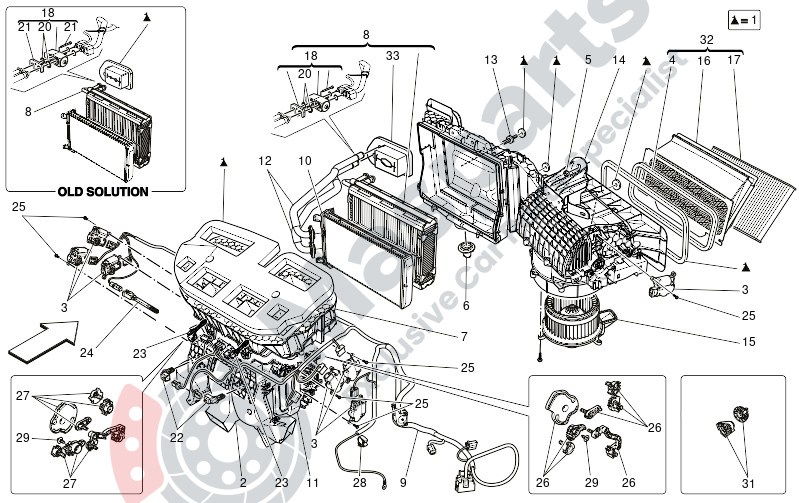

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009608 | Sealings Kit M161 Lhd |
$45.58 |
|
|
| 2 | M-673009330 | Air Duct |
$66.64 |
|
|
| 3 | M-670104418 | Actuator |
$63.62 |
|
|
| 4 | M-670007353 | Gasket |
$30.14 |
|
|
| 5 | M-675000093 | Nut |
$1.44 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.27 |
|
|
| 7 | M-673009369 | Air Duct |
$61.48 |
|
|
| 8 | M-673013159 | Lhd Evaporator |
$98.16 |
|
|
| 9 | M-673009320 | Wiring Harness |
$182.24 |
|
|
| 10 | M-673009324 | Heater |
$142.00 |
|
|
| 11 | M-673009317 | Central Body Hvac Gasoline |
$267.80 |
|
|
| 12 | M-673009325 | Heater Hose Kit |
$80.72 |
|
|
| 13 | M-673009338 | Pin |
$16.90 |
|
|
| 14 | M-673009318 | Air Inlet Module Lhd |
$349.68 |
|
|
| 15 | M-673009319 | Electrofan Gsx |
$441.62 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$31.26 |
|
|
| 17 | M-670005021 | Pollen Filter |
$50.17 |
|
|
| 18 | M-673009322 | Txv Kit |
$209.40 |
|
|
| 20 | M-673009339 | Gasket Kit |
$45.58 |
|
|
| 21 | M-673009336 | Txv Fixing Kit |
$14.17 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
$34.87 |
|
|
| 23 | M-673009332 | Air Temp. Vent Sensor |
$29.70 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
$46.09 |
|
|
| 25 | M-673009334 | Screw |
$7.23 |
|
|
| 26 | M-673009326 | Kit Right Side Mix/Mode Kine |
$24.15 |
|
|
| 27 | M-673009327 | Kit Left Side Mix/Mode Kinem |
$24.15 |
|
|
| 28 | M-673009337 | Retaining Clip |
$15.14 |
|
|
| 29 | M-673009335 | Screw |
$11.69 |
|
|
| 31 | M-673009328 | Kit Air Inlet/Rec Kinematics |
$19.15 |
|
|
| 32 | M-670004016 | Air Conditioner Box With Pol |
$83.20 |
|
|
| 33 | M-673014092 | Sealings Set |
$38.21 |
|
