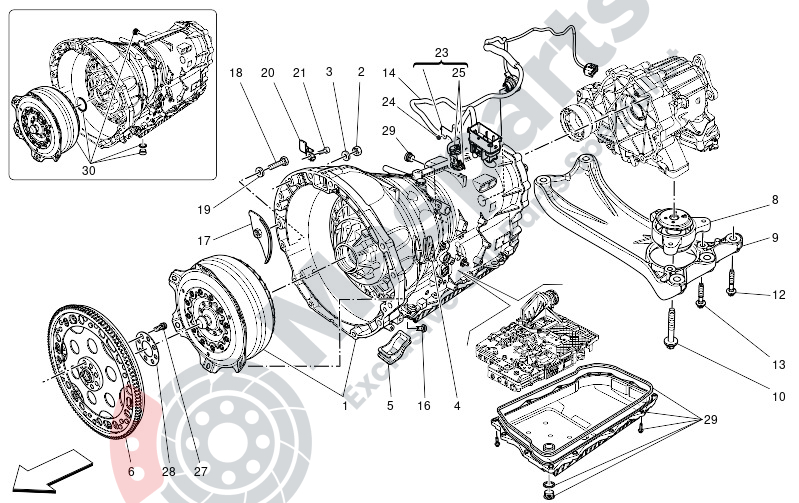

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670155636 | Transmission Auto 8Hp70 Awd |
$6,587.72 |
|
|
| 2 | M-675000184 | Nut |
$1.74 |
|
|
| 3 | M-675000098 | Washer |
$1.86 |
|
|
| 4 | M-670003520 | Plug |
$5.03 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.06 |
|
|
| 6 | M-670105062 | Engine Flywheel Assembly |
$639.63 |
|
|
| 8 | M-670106865 | Gearbox Side Suspension Bush |
$93.85 |
|
|
| 9 | M-670107736 | Gearbox Mounting Cross Membe |
$353.13 |
|
|
| 10 | M-670003988 | Screw |
$11.85 |
|
|
| 12 | M-670035766 | Screw |
$2.40 |
|
|
| 13 | M-670103989 | Screw |
$5.18 |
|
|
| 14 | M-670104386 | Automatic Gearbox Wiring Har |
$129.05 |
|
|
| 16 | M-670005384 | Screw |
$2.41 |
|
|
| 20 | M-670005079 | Bracket |
$4.45 |
|
|
| 21 | M-675000191 | Screw |
$1.97 |
|
|
| 23 | M-670035991 | Gearbox Cable Fastening Brac |
$9.85 |
|
|
| 24 | M-675000093 | Nut |
$1.43 |
|
|
| 27 | M-670002933 | Screw |
$7.65 |
|
|
| 28 | M-670002257 | Shim |
$4.48 |
|
|
| 29 | M-673005766 | Oilpan |
$538.74 |
|
|
| 30 | M-673011124 | Kit Convertitore Cambio V8 M |
$2,626.02 |
|
