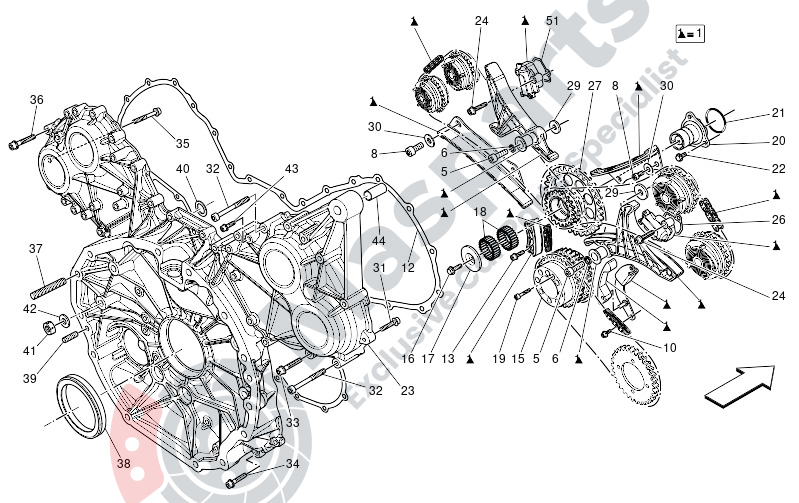

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-807534 | Timing Control Assembly |
$863.05 |
|
|
| 6 | M-284900 | Washer |
$2.21 |
|
|
| 8 | M-14302821 | Screw |
$2.09 |
|
|
| 12 | M-312860 | Gasket V8 Engine Timing Cove |
$166.47 |
|
|
| 13 | M-282396 | Screw |
$2.94 |
|
|
| 15 | M-286222 | Crankshaft Terminal Gear |
$389.89 |
|
|
| 16 | M-284898 | Screw |
$14.36 |
|
|
| 17 | M-304699 | Transmission Toothed Wheel S |
$30.27 |
|
|
| 18 | M-267808 | Roller Cage |
$20.59 |
|
|
| 19 | M-245914 | Screw |
$2.45 |
|
|
| 20 | M-322199 | Support |
$154.78 |
|
|
| 21 | M-154191 | O-Ring D. 44.17- 8X 100 |
$3.70 |
|
|
| 22 | M-284898 | Screw |
$14.36 |
|
|
| 23 | M-343364 | V8 Engine Timing Cover |
$996.28 |
|
|
| 24 | M-282398 | Screw |
$2.94 |
|
|
| 26 | M-322518 | Gasket |
$11.35 |
|
|
| 27 | M-287000 | Transmission Toothed Wheel |
$391.85 |
|
|
| 29 | M-288341 | Washer |
$14.70 |
|
|
| 30 | M-163759 | Washer |
$12.69 |
|
|
| 32 | M-255494 | Screw |
$3.02 |
|
|
| 33 | M-231623 | Socket Head Screw With Washe |
$1.11 |
|
|
| 34 | M-231620 | Socket Head Screw With Washe |
$1.63 |
|
|
| 35 | M-231624 | Socket Head Screw With Washe |
$2.82 |
|
|
| 36 | M-231622 | Socket Head Screw With Washe |
$1.12 |
|
|
| 37 | M-13546734 | Stud M10X1.25X20 Stem |
$4.45 |
|
|
| 38 | M-240214 | Crankshaft Stroke Gasket |
$56.63 |
|
|
| 39 | M-10337710 | Pin |
$9.50 |
|
|
| 40 | M-281725 | Gasket |
$2.36 |
|
|
| 41 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.80 |
|
|
| 42 | M-178348 | Machined Washer D.10.2-20X2. |
$3.67 |
|
|
| 43 | M-231616 | Screw |
$2.09 |
|
|
| 44 | M-298694 | Threaded Insert |
$6.64 |
|
|
| 51 | M-306440 | Tensioner Gasket |
$6.09 |
|
