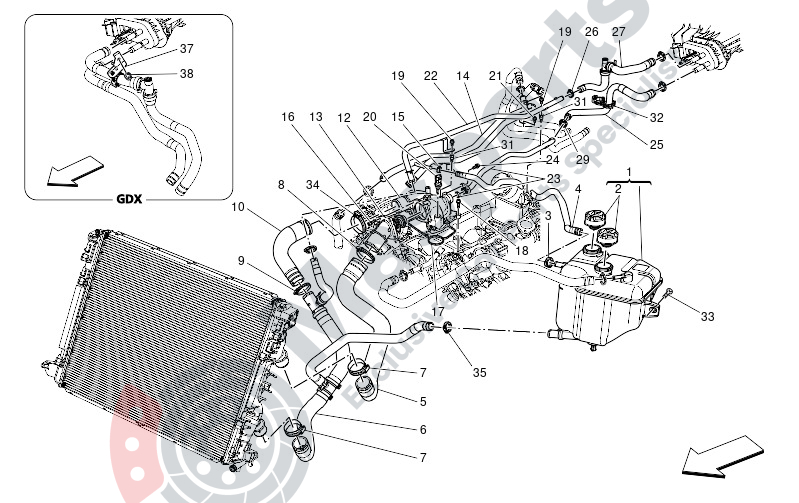

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031649 | Cpl. Coolant Tank |
$88.78 |
|
|
| 2 | M-670003408 | Mount Plug |
$14.04 |
|
|
| 3 | M-675000344 | Strap Collar |
$2.43 |
|
|
| 4 | M-806287 | Water Vent Pipe |
$129.80 |
|
|
| 5 | M-670103770 | Radiator Water Inlet Pipe |
$55.86 |
|
|
| 6 | M-670103771 | Water Sleeve |
$113.95 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.83 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.83 |
|
|
| 9 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.87 |
|
|
| 10 | M-294684 | Sleeve. |
$282.39 |
|
|
| 12 | M-304372 | H2O Thermostat Cover |
$491.18 |
|
|
| 13 | M-287652 | Water Termostat |
$223.56 |
|
|
| 14 | M-795812 | Secondary Water Delivery And |
$158.54 |
|
|
| 15 | M-11431090 | Clamp |
$4.62 |
|
|
| 16 | M-231619 | Socket Head Screw With Washe |
$2.48 |
|
|
| 17 | M-295159 | Gasket |
$45.50 |
|
|
| 18 | M-231620 | Socket Head Screw With Washe |
$1.65 |
|
|
| 19 | M-231616 | Screw |
$2.11 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
$40.09 |
|
|
| 21 | M-231616 | Screw |
$2.11 |
|
|
| 22 | M-768610 | Water Return Pipe From Excha |
$94.17 |
|
|
| 23 | M-304041 | Water Pipe To Heater |
$105.03 |
|
|
| 24 | M-231617 | Socket Head Screw With Washe |
$2.48 |
|
|
| 25 | M-670103773 | Water Delivery Sleeve To Hea |
$54.04 |
|
|
| 26 | M-675000370 | Strap Collar |
$2.05 |
|
|
| 27 | M-670103774 | Water Return Sleeve From Hea |
$81.97 |
|
|
| 29 | M-675000370 | Strap Collar |
$2.05 |
|
|
| 31 | M-287940 | Stud |
$13.87 |
|
|
| 33 | M-675000088 | Screw |
$2.68 |
|
|
| 34 | M-272913 | Screw Collar |
$5.27 |
|
|
| 35 | M-675000658 | Snap Collar |
$5.68 |
|
