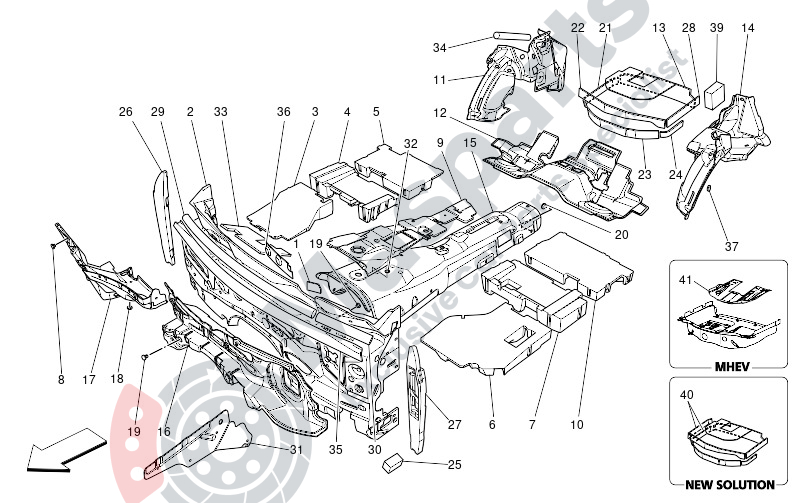

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.70 |
|
|
| 2 | M-670104969 | Dashboard Soundproofing Pane |
$230.45 |
|
|
| 3 | M-670103999 | Rh Front Support |
$56.82 |
|
|
| 4 | M-670038499 | Rh Central Support |
$47.07 |
|
|
| 5 | M-670038501 | Rh Rear Support |
$35.26 |
|
|
| 6 | M-670038496 | Lh Front Support |
$48.46 |
|
|
| 7 | M-670038498 | Lh Central Support |
$37.82 |
|
|
| 9 | M-670032150 | Tunnel Insulation |
$54.14 |
|
|
| 10 | M-670038500 | Lh Rear Support |
$30.78 |
|
|
| 11 | M-670032146 | Rh Rear Sound-Proof Material |
$94.45 |
|
|
| 12 | M-670156062 | Rear Seat Cushion Soudproofi |
$75.22 |
|
|
| 13 | M-670107542 | Luggage Compartment Soundpro |
$9.75 |
|
|
| 14 | M-670032147 | Lh Rear Sound-Proof Material |
$93.43 |
|
|
| 15 | M-670214735 | Sound-Absorbing Shelter |
$68.41 |
|
|
| 16 | M-670004556 | Engine Compartment Insulatio |
$81.43 |
|
|
| 17 | M-670102939 | Engine Compartment Upr Insul |
$29.33 |
|
|
| 18 | M-675000453 | Plate |
$1.64 |
|
|
| 20 | M-675000411 | Washer |
$3.65 |
|
|
| 22 | M-670107541 | Spare Wheel Housing Front So |
$6.71 |
|
|
| 23 | M-670107543 | Spare Wheel Housing Lower Fr |
$6.81 |
|
|
| 24 | M-670107544 | Lh Rear Longitudinal Member |
$3.87 |
|
|
| 26 | M-670033522 | R.H. Insulation |
$27.29 |
|
|
| 27 | M-670033524 | L.H. Insulation |
$27.29 |
|
|
| 29 | M-670100307 | Rh Side Dashboard Insulation |
$9.35 |
|
|
| 30 | M-670100306 | Lh Side Dashboard Insulation |
$9.43 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.45 |
|
|
| 33 | M-670161860 | Front Floor Insulation |
$15.92 |
|
|
| 34 | M-670039095 | Stuffer |
$13.11 |
|
|
| 35 | M-670039987 | Soundproof Panel Top Crossba |
$20.36 |
|
|
| 36 | M-670001855 | Lateral Soundproofing |
$2.17 |
|
|
| 37 | M-675000424 | Plug |
$8.64 |
|
|
| 39 | M-670039094 | Pad |
$11.88 |
|
|
| 40 | M-670107545 | Rear Longitudinal Member Sou |
$4.39 |
|
|
| 41 | M-670156325 | Soundproofing Panel |
$9.02 |
|
