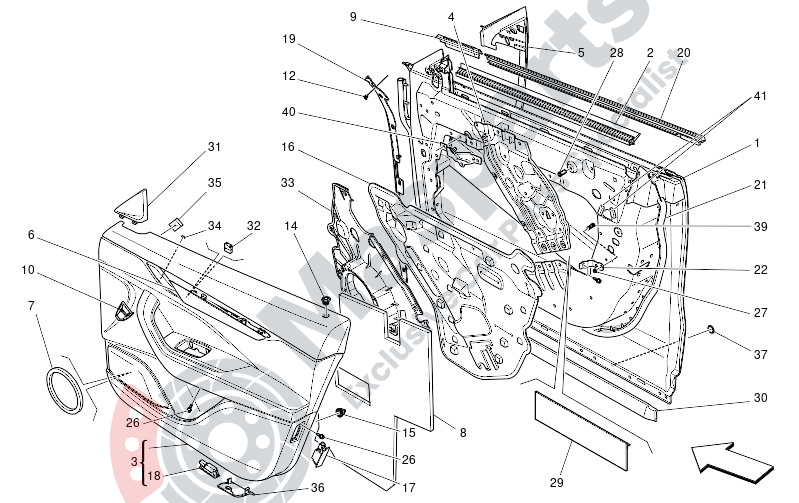

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009989 | Cpl Rh Front Door |
$1,411.71 |
|
|
| 2 | M-670032875 | Rh Front Outer Glass Scraper |
$46.39 |
|
|
| 4 | M-670032897 | Rh Front Door Central Reinfo |
$52.43 |
|
|
| 5 | M-670033466 | Rh Door Mirror Gasket |
$160.20 |
|
|
| 7 | M-673005973 | Woofer Speaker Seal |
$5.13 |
|
|
| 8 | M-673005971 | Front Acoustic Insulator |
$44.07 |
|
|
| 9 | M-670153313 | Rh Front Door Glass Scraper |
$134.36 |
|
|
| 12 | M-670008112 | Anti-Rustle Seal Fixing Pin |
$1.67 |
|
|
| 14 | M-673005970 | Lock Knob Lid |
$6.90 |
|
|
| 15 | M-670219478 | Perno Di Fiss. |
$2.79 |
|
|
| 16 | M-670101524 | Rh Front Door Water Guard |
$85.58 |
|
|
| 17 | M-670106485 | R.H. Domelight |
$11.29 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.38 |
|
|
| 19 | M-670032876 | Rh Front Door Vertical Gaske |
$51.74 |
|
|
| 22 | M-670005885 | Bracket Fast. Front Rh Door |
$5.58 |
|
|
| 26 | M-675000432 | Screw |
$2.25 |
|
|
| 27 | M-675000449 | Nut |
$1.20 |
|
|
| 28 | M-670005149 | Rivet |
$2.86 |
|
|
| 29 | M-670034380 | Doors Soundproofing Adhesive |
$3.52 |
|
|
| 31 | M-670065829 | Rh Front Internal Mirror Tri |
$19.54 |
|
|
| 32 | M-673005975 | Rh Locking System Micro Swit |
$20.90 |
|
|
| 34 | M-673005974 | Metal Bushing |
$2.39 |
|
|
| 35 | M-673005979 | Locator Seal |
$2.09 |
|
|
| 37 | M-675000762 | Rubber Closing Plug |
$1.89 |
|
|
| 39 | M-670005788 | Pin |
$2.86 |
|
|
| 40 | M-670034039 | Upper Central Reinforcement |
$7.20 |
|
|
| 41 | M-670100369 | Insulating |
$6.23 |
|
