Diagram image not available

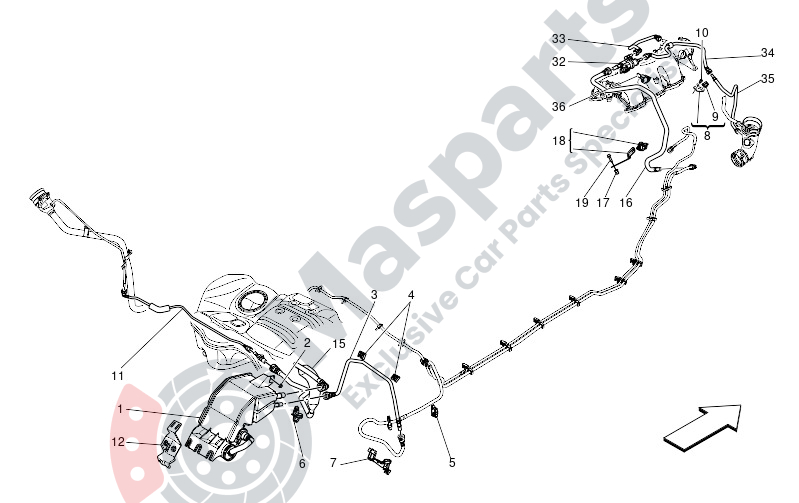

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033287 | Fuel Vapour Filter |
$199.67 |
|
|
| 2 | M-675000114 | Nut |
$1.27 |
|
|
| 3 | M-670033294 | Canister Pipe |
$32.80 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-675000790 | Clip |
$1.27 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.18 |
|
|
| 7 | M-670031947 | Vapour System Clip |
$10.15 |
|
|
| 8 | M-670005045 | Cpl Bracket |
$6.04 |
|
|
| 9 | M-675000132 | Clip |
$1.18 |
|
|
| 10 | M-675000191 | Screw |
$2.03 |
|
|
| 11 | M-670033572 | Flexible Vapour Pipe |
$35.88 |
|
|
| 12 | M-670034699 | Canister Bracket |
$18.34 |
|
|
| 15 | M-670033274 | Vent Pipe |
$93.40 |
|
|
| 17 | M-675000576 | Rivet |
$1.20 |
|
|
| 18 | M-670104126 | Canister Pipe Bracket |
$7.23 |
|
|
| 19 | M-675000242 | Screw |
$3.39 |
|
|
| 32 | M-670162028 | Solenoid Valve |
$39.77 |
|
|
| 33 | M-670033129 | Vapour Pipe |
$32.70 |
|
|
| 34 | M-670033130 | Vapour Pipe |
$51.94 |
|
