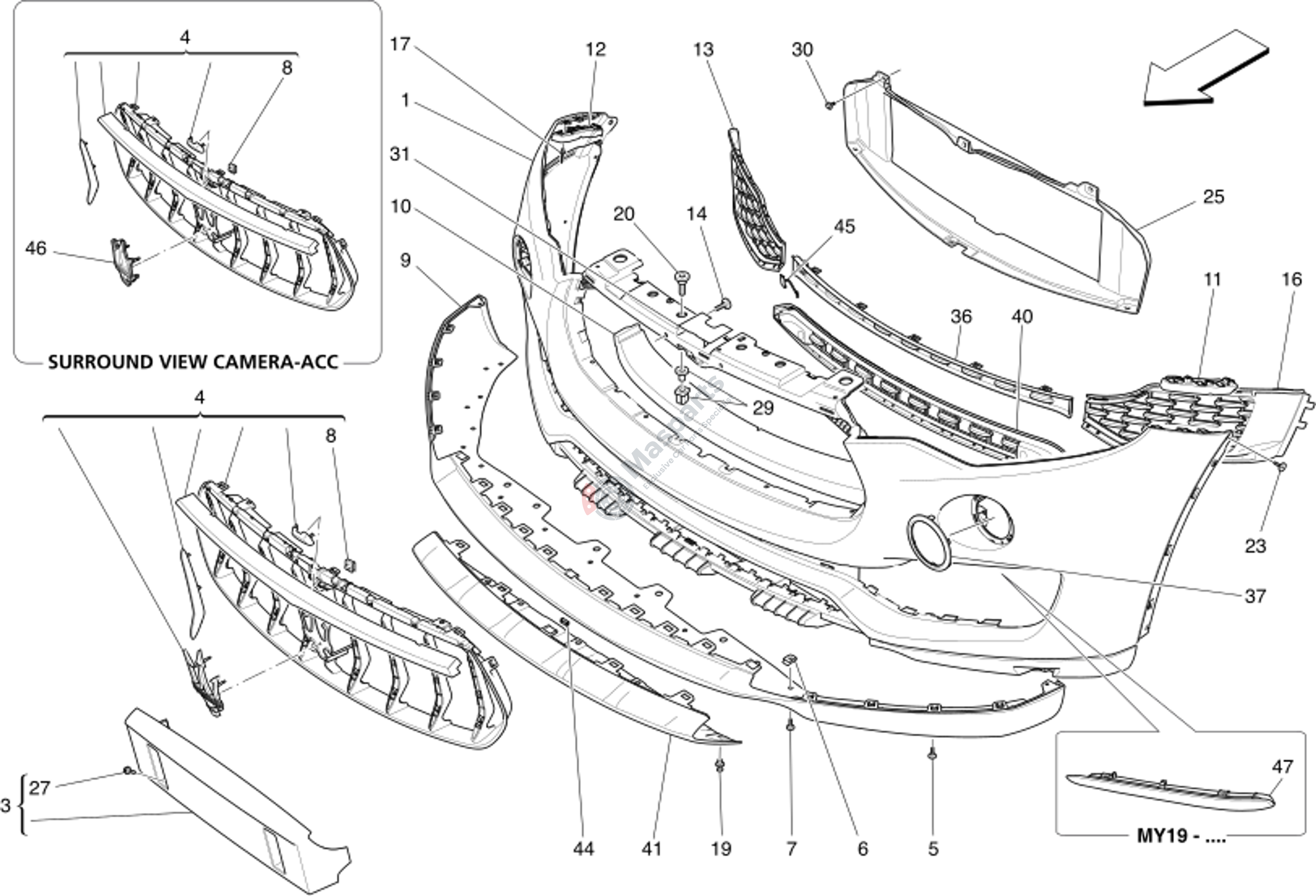

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 5 | M-670034505 | Special Screw |
$2.53 |
|
|
| 6 | M-675000020 | Lower Shield Fastening Clip |
$7.13 |
|
|
| 7 | M-675000326 | Screw |
$1.97 |
|
|
| 8 | M-670100069 | Clip |
$2.53 |
|
|
| 10 | M-670032341 | Damper |
$49.09 |
|
|
| 11 | M-670032916 | Lh Bracket |
$11.64 |
|
|
| 12 | M-670032915 | Rh Bracket |
$11.64 |
|
|
| 13 | M-670065941 | Rh Top Front Grille Bumper |
$69.02 |
|
|
| 14 | M-670034559 | Screw |
$2.10 |
|
|
| 16 | M-670065953 | Lh Top Front Grille Bumper |
$69.02 |
|
|
| 17 | M-675000323 | Rivet |
$1.87 |
|
|
| 19 | M-670014562 | Fixing Button. |
$3.06 |
|
|
| 20 | M-670003766 | Screw |
$5.00 |
|
|
| 23 | M-670034505 | Special Screw |
$2.53 |
|
|
| 25 | M-670033498 | Air Duct |
$116.95 |
|
|
| 27 | M-675000228 | Screw |
$2.27 |
|
|
| 29 | M-670005535 | Block |
$7.49 |
|
|
| 30 | M-675000588 | Screw |
$1.01 |
|
|
| 31 | M-670039369 | Front Bumper Adhesive M161 |
$32.70 |
|
|
| 36 | M-670065942 | Central Top Front Grille Bum |
$56.57 |
|
|
| 41 | M-670065943 | Front Skid Plate (Chrome) |
$238.78 |
|
|
| 44 | M-670034560 | Clip |
$2.44 |
|
|
| 46 | M-670071795 | Radar Trim |
$404.02 |
|
