The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

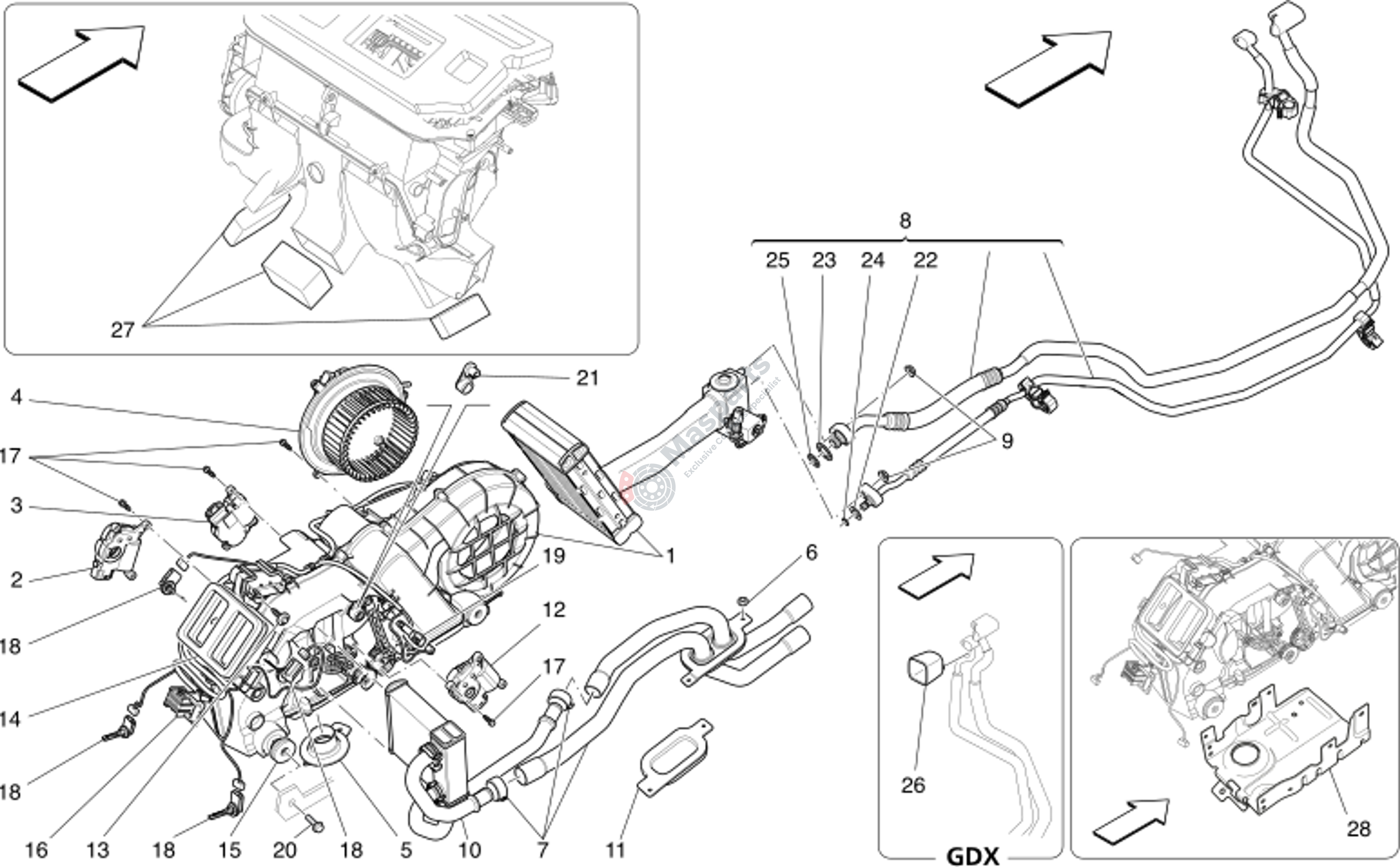

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673002681 | Rear Air Conditioning Case |
$1,403.29 |
|
|
| 2 | M-670035896 | Rear Hvac Distrib. Actuator |
$135.42 |
|
|
| 3 | M-670035898 | Rear Hvac Lh Distrib. Actuat |
$135.42 |
|
|
| 4 | M-670003710 | Electric Fan |
$1,013.72 |
|
|
| 5 | M-670035055 | Condensation Drain Pipe |
$28.86 |
|
|
| 6 | M-675000093 | Nut |
$1.48 |
|
|
| 7 | M-673007341 | Evaporator Rubber Pipes Assy |
$284.58 |
|
|
| 8 | M-670033076 | Pipe Between Evapourator And |
$248.28 |
|
|
| 9 | M-675000328 | Nut |
$1.39 |
|
|
| 10 | M-673000042 | Asm Heater Core/Pipes |
$420.99 |
|
|
| 11 | M-670005088 | Rubber Cap |
$28.10 |
|
|
| 12 | M-670035897 | Rear Hvac Rh Distrib. Actuat |
$135.42 |
|
|
| 13 | M-673000049 | Screw And Washer |
$29.92 |
|
|
| 14 | M-673000050 | Gasket |
$31.78 |
|
|
| 15 | M-673000044 | Rubber |
$63.57 |
|
|
| 16 | M-673002682 | Rear Cooler Wiring Harness |
$375.30 |
|
|
| 17 | M-68391900 | Screw. |
$2.94 |
|
|
| 18 | M-673000046 | Sensor |
$142.97 |
|
|
| 19 | M-673000045 | Sensor |
$48.60 |
|
|
| 20 | M-675000436 | Screw |
$2.45 |
|
|
| 21 | M-673007371 | Actuator Lever Rh/Lh |
$48.09 |
|
|
| 22 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.88 |
|
|
| 23 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.32 |
|
|
| 24 | M-675000119 | O-Ring 68X187 |
$1.99 |
|
|
| 25 | M-675000306 | O-Ring 136X243 |
$1.95 |
|
|
| 28 | M-670109782 | Hvac Fixing Bracket Dx |
$28.89 |
|
