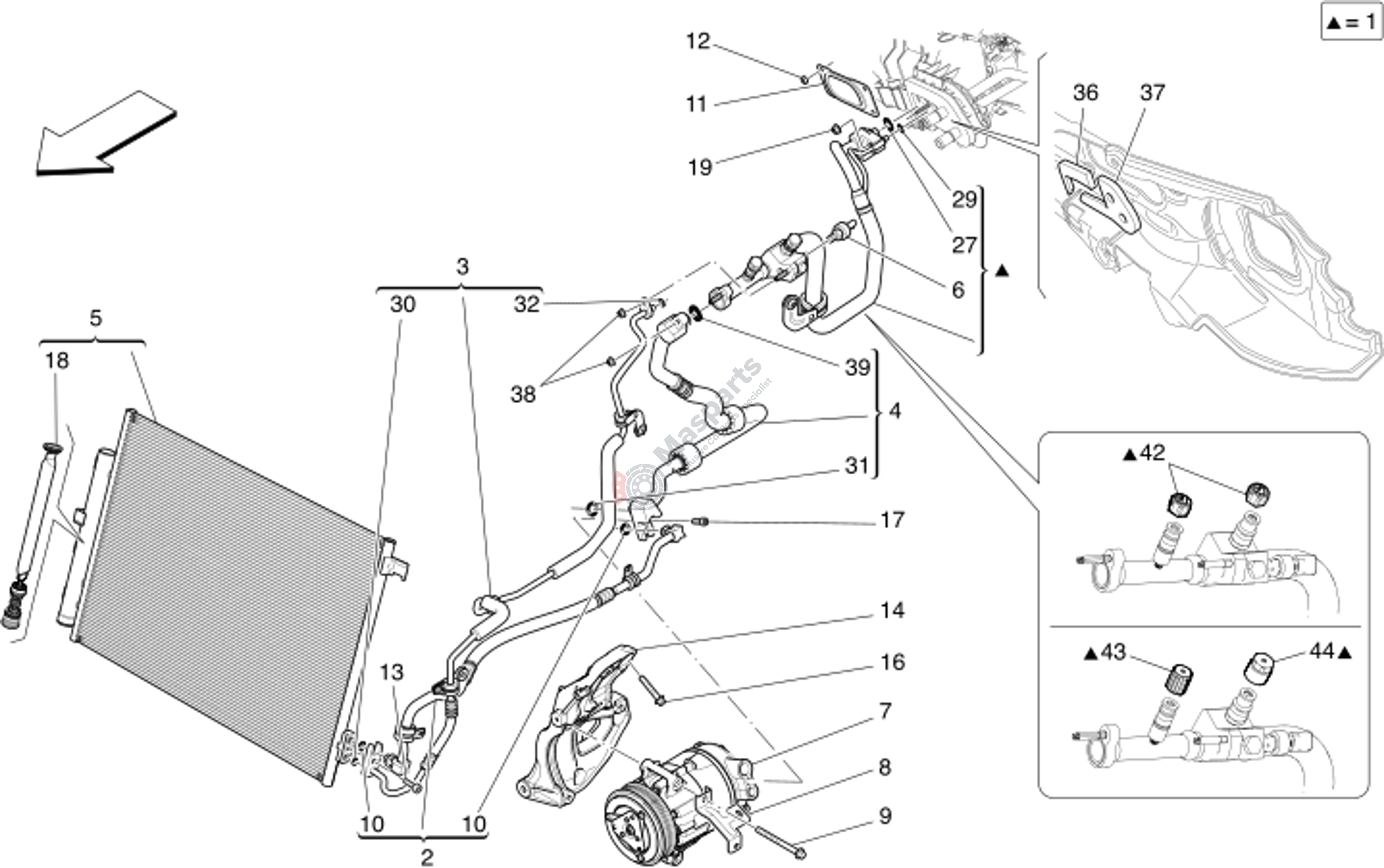

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033078 | Pipe From Evapourator To Uni |
€214,20 |
|
|
| 2 | M-670033074 | Pipe A.C. - Compressor |
€116,45 |
|
|
| 3 | M-670033082 | Pipe Between Condenser And J |
€322,15 |
|
|
| 4 | M-670033075 | Pipe From Compressor To Unio |
€379,10 |
|
|
| 5 | M-670009820 | A.C. Condenser |
€686,80 |
|
|
| 6 | M-675000557 | Pressostat |
€59,77 |
|
|
| 7 | M-954108 | A/C Compressor |
€1.249,50 |
|
|
| 8 | M-673001244 | Bracket |
€21,99 |
|
|
| 9 | M-46328708 | Flange Bolt |
€3,13 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
€6,62 |
|
|
| 11 | M-670005087 | Plug |
€16,01 |
|
|
| 12 | M-675000315 | Nut |
€1,51 |
|
|
| 13 | M-675000456 | Screw |
€3,99 |
|
|
| 14 | M-46328310 | Bracket |
€94,76 |
|
|
| 16 | M-46328715 | Flange Bolt |
€2,09 |
|
|
| 17 | M-675000249 | Screw |
€1,20 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
€203,15 |
|
|
| 19 | M-675000328 | Nut |
€1,17 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
€1,67 |
|
|
| 36 | M-670100149 | Lhd Upper Plenum Acoustic Li |
€6,81 |
|
|
| 37 | M-670039321 | Lhd Lower Plenum Acoustic Li |
€14,72 |
|
|
| 38 | M-675000315 | Nut |
€1,51 |
|
|
| 39 | M-675000306 | O-Ring 136X243 |
€1,63 |
|
|
| 42 | M-673009426 | Gas Cap |
€24,38 |
|
