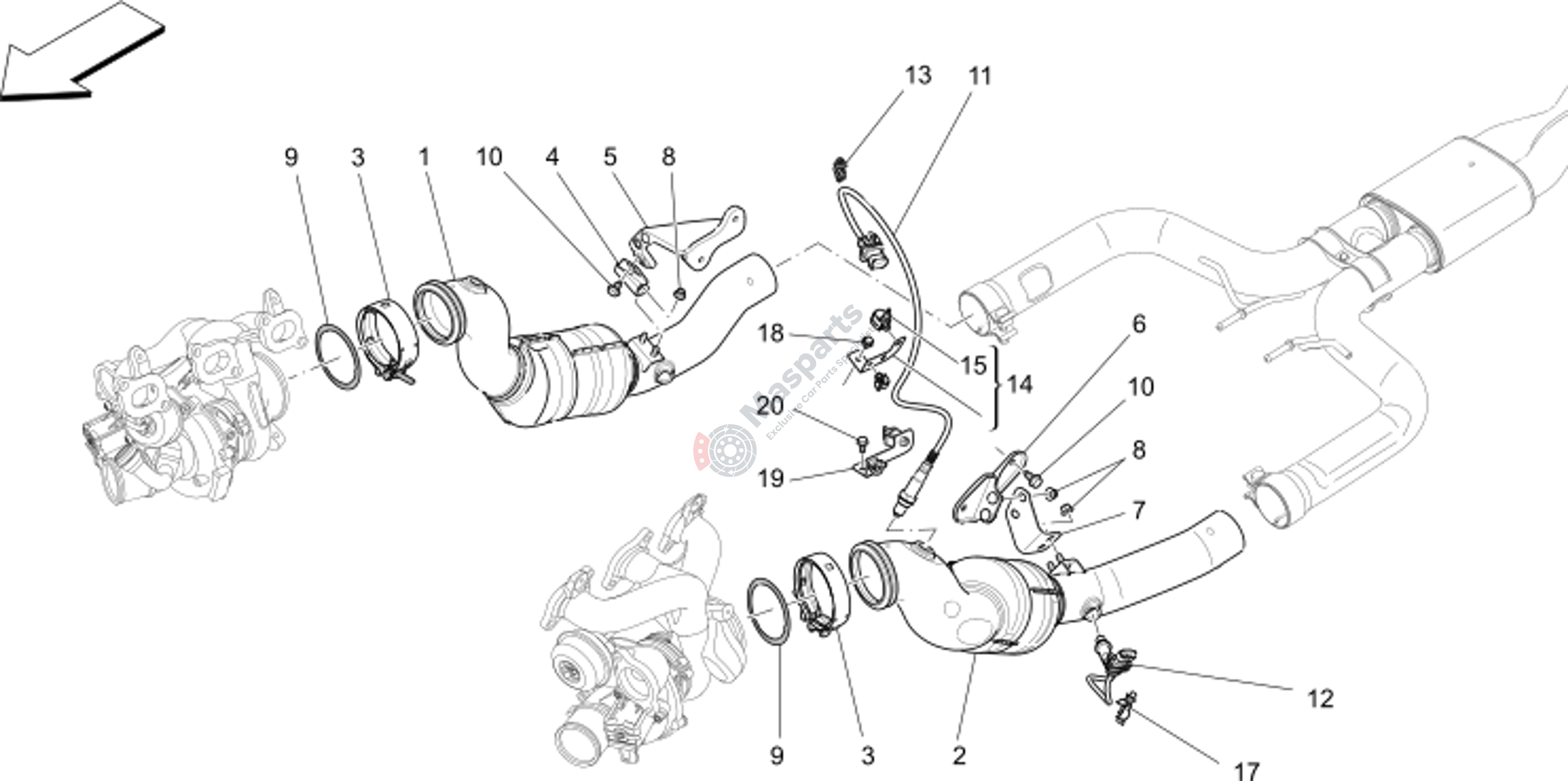

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670103673 | Hot-End Ccc Dx |
$3,512.31 |
|
|
| 2 | M-670103672 | Cpl Lh Catalytic Converter |
$3,141.09 |
|
|
| 3 | M-675000060 | Collar |
$28.78 |
|
|
| 4 | M-670003875 | Rh Bracket |
$14.18 |
|
|
| 5 | M-670003852 | Rh Bracket |
$81.42 |
|
|
| 6 | M-670030018 | Lh Bracket |
$29.32 |
|
|
| 7 | M-670003853 | Lh Bracket |
$10.52 |
|
|
| 8 | M-675000091 | Nut |
$1.25 |
|
|
| 9 | M-675000052 | Gasket |
$8.41 |
|
|
| 10 | M-675000257 | Screw |
$5.93 |
|
|
| 11 | M-670009075 | Front Lambda Sensor |
$310.76 |
|
|
| 12 | M-670153175 | Rear Lambda Sensor |
$213.29 |
|
|
| 13 | M-675000143 | Clip |
$0.97 |
|
|
| 14 | M-670005333 | Cpl Bracket |
$24.62 |
|
|
| 15 | M-675000134 | Clip |
$5.86 |
|
|
| 17 | M-670007619 | Retaining Clip |
$1.67 |
|
|
| 18 | M-675000102 | Screw |
$2.59 |
|
|
| 19 | M-670008979 | Bracket |
$6.41 |
|
|
| 20 | M-675000102 | Screw |
$2.59 |
|
