Diagram image not available

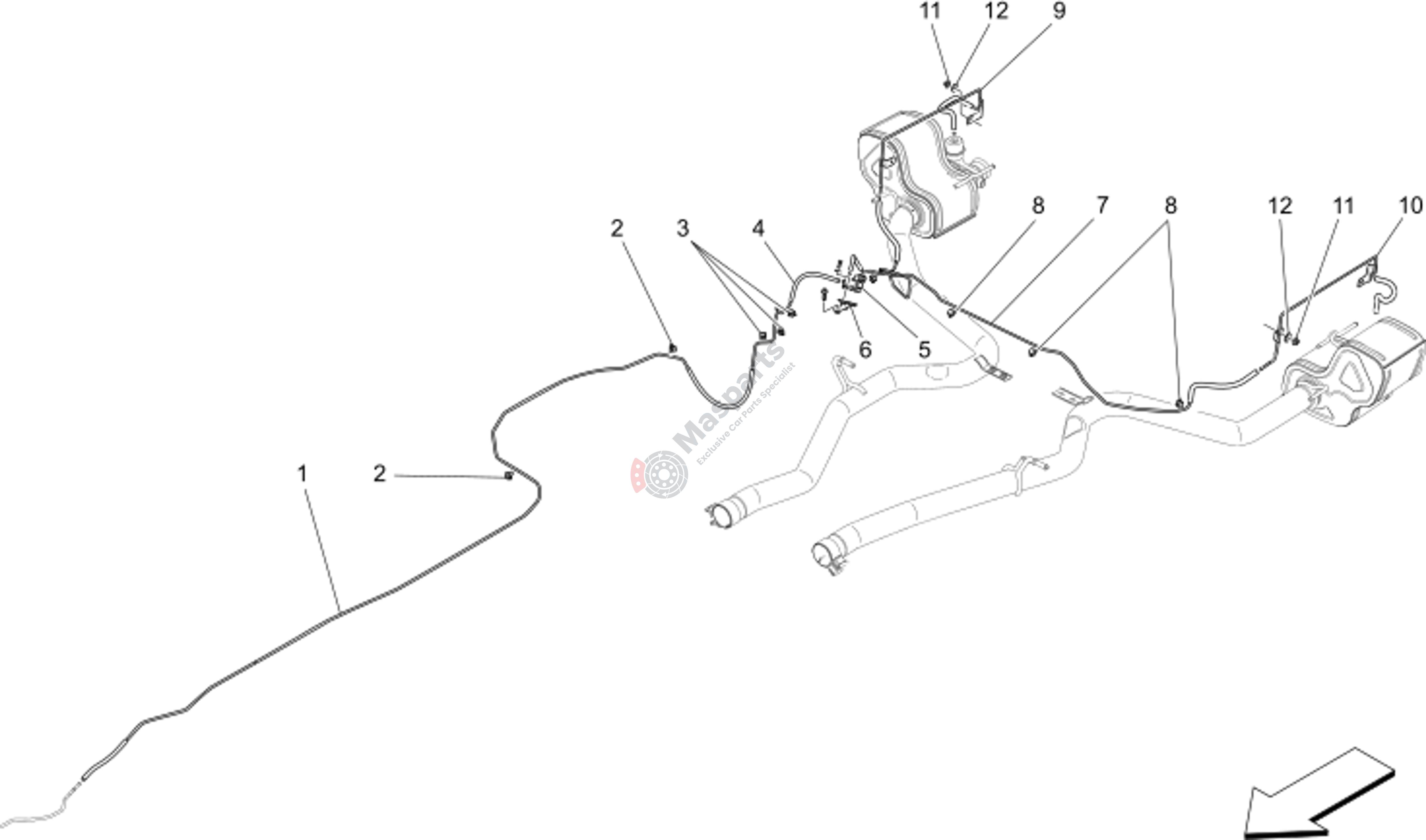

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670034607 | Underbody Vacuum Pipe |
$42.07 |
|
|
| 2 | M-675000141 | Clip |
$0.96 |
|
|
| 3 | M-675000356 | Clip |
$1.67 |
|
|
| 4 | M-670032177 | Underbody Vacuum Pipe - 3Rd |
$20.16 |
|
|
| 5 | M-670002843 | On/Off Solenoid Valve |
$43.13 |
|
|
| 6 | M-670032179 | Bracket |
$16.90 |
|
|
| 7 | M-670032178 | Underbody Vacuum Pipe - 4Th |
$73.95 |
|
|
| 8 | M-675000356 | Clip |
$1.67 |
|
|
| 9 | M-670036460 | Underbody Rh Vacuum Pipe |
$65.62 |
|
|
| 10 | M-670036461 | Underbody Lh Vacuum Pipe |
$65.62 |
|
|
| 11 | M-675000447 | Nut |
$3.55 |
|
|
| 12 | M-675000441 | Washer |
$1.18 |
|
