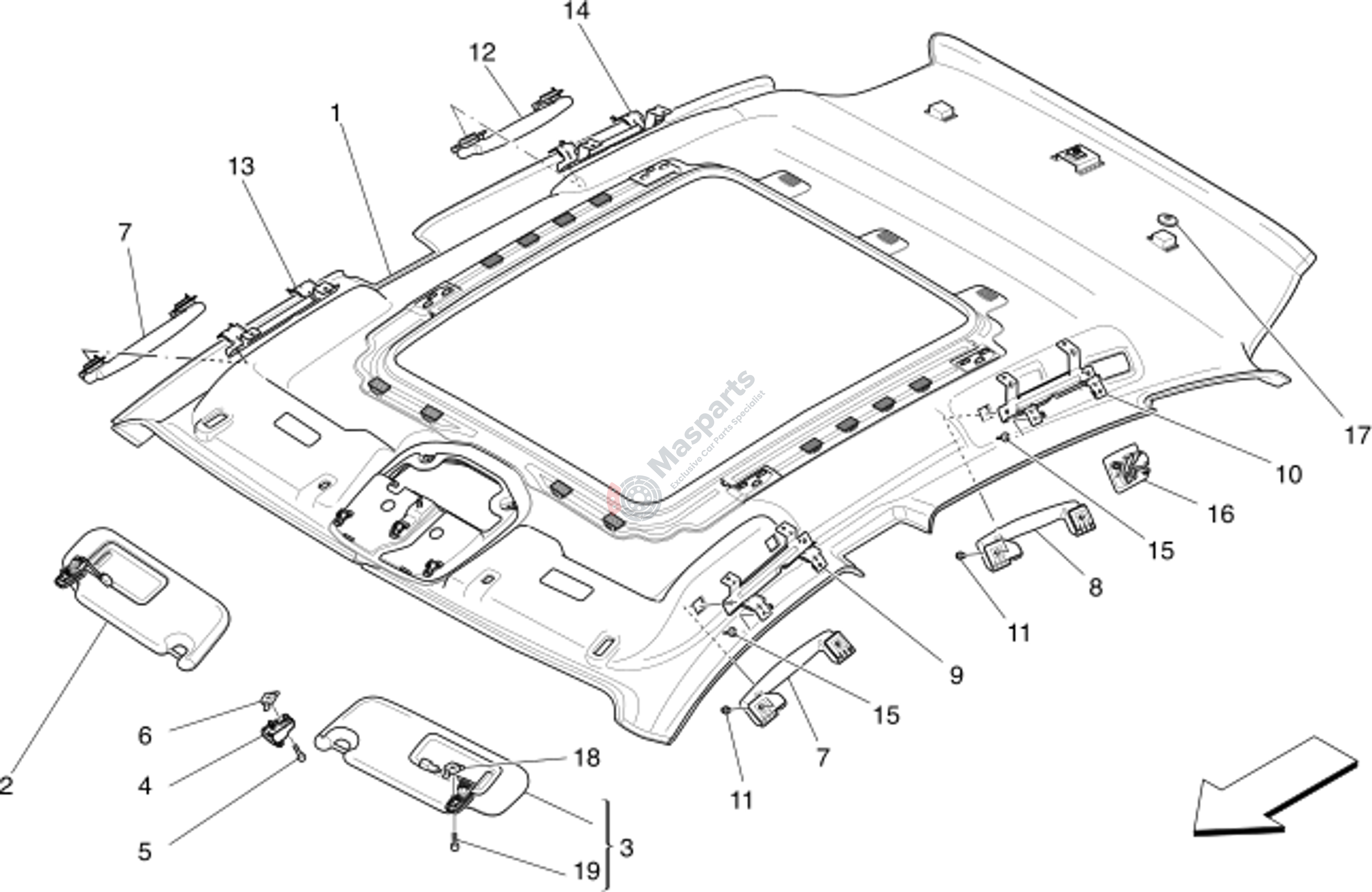

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 5 | M-675000816 | Screw |
$0.92 |
|
|
| 6 | M-675000817 | Clip |
$4.29 |
|
|
| 9 | M-670033835 | Lh Front Handhold Support Br |
$8.55 |
|
|
| 10 | M-670033837 | Lh Rear Handhold Support Bra |
$16.67 |
|
|
| 11 | M-675000432 | Screw |
$2.21 |
|
|
| 13 | M-670033834 | Rh Front Handhold Support Br |
$8.55 |
|
|
| 14 | M-670033836 | Rh Rear Handhold Support Bra |
$16.67 |
|
|
| 15 | M-675000404 | Cpl. Tv Control Station Fixi |
$1.43 |
|
|
| 17 | M-670035500 | Fastening Button |
$9.94 |
|
|
| 18 | M-670030886 | Retaining Clip |
$3.66 |
|
|
| 19 | M-675000816 | Screw |
$0.92 |
|
