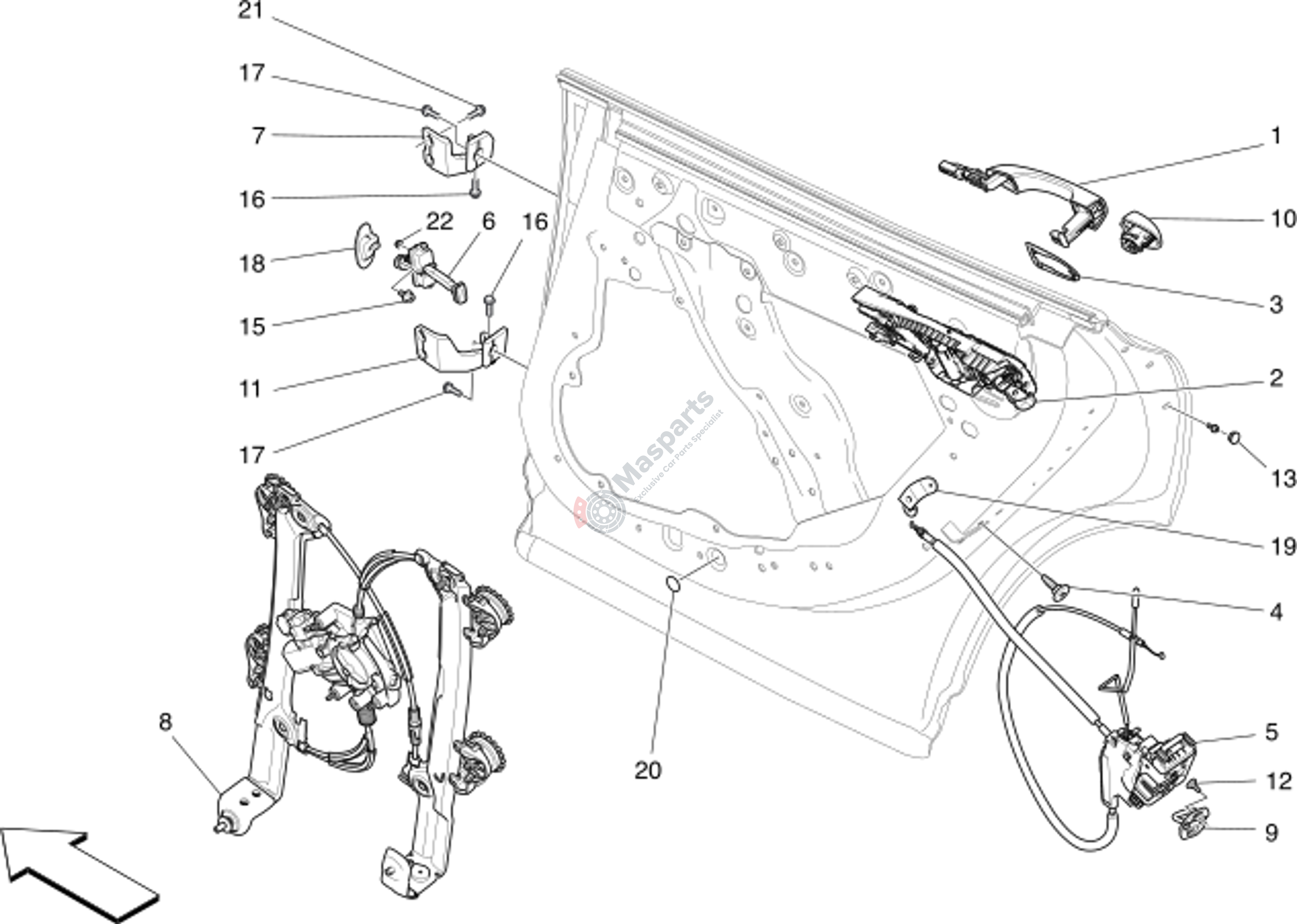

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670005442 | External Door Handle Gasket |
$1.68 |
|
|
| 4 | M-670005609 | Screw |
$2.67 |
|
|
| 6 | M-670032887 | Tie Rod |
$20.94 |
|
|
| 7 | M-670034122 | Rh Rear Door M161 Upper Hing |
$18.96 |
|
|
| 9 | M-675000573 | Doors Lock Striker |
$17.48 |
|
|
| 11 | M-670034123 | Rh Rear Door M161 Lower Hing |
$18.96 |
|
|
| 12 | M-670009758 | Screw |
$2.04 |
|
|
| 15 | M-670006984 | Screw |
$2.29 |
|
|
| 16 | M-675000005 | Special Screw |
$2.23 |
|
|
| 17 | M-675000485 | Special Screw |
$1.53 |
|
|
| 18 | M-670034687 | Door Stopping Seal |
$3.01 |
|
|
| 19 | M-670034722 | Bracket |
$5.61 |
|
|
| 21 | M-675000485 | Special Screw |
$1.53 |
|
|
| 22 | M-670006983 | Flanged Nut |
$1.68 |
|
