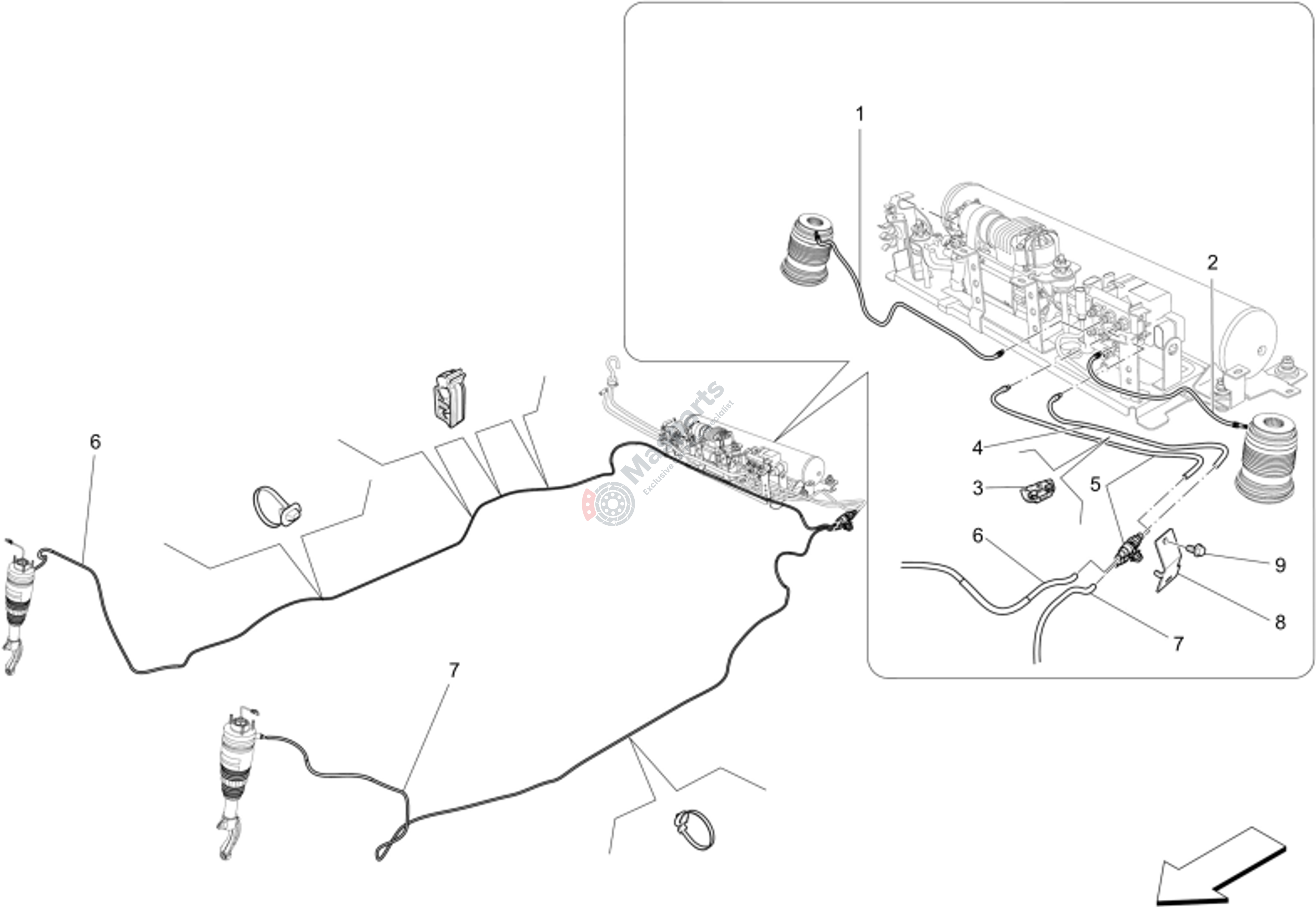

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670101155 | Rear Rh Shock Absorber Pipe |
$24.37 |
|
|
| 2 | M-670101156 | Rear Lh Shock Absorber Pipe |
$24.37 |
|
|
| 3 | M-675000107 | Clip |
$0.96 |
|
|
| 4 | M-670101154 | Rh Pipe - Valve Block And Sh |
$17.13 |
|
|
| 5 | M-670101153 | Lh Pipe - Valve Block And Sh |
$41.59 |
|
|
| 6 | M-670101152 | Front Rh Shock Absorber Pipe |
$66.25 |
|
|
| 7 | M-670100148 | Front Lh Shock Absorber Pipe |
$62.43 |
|
|
| 8 | M-670034996 | Pipes Bracket |
$3.60 |
|
|
| 9 | M-675000087 | Screw |
$3.46 |
|
