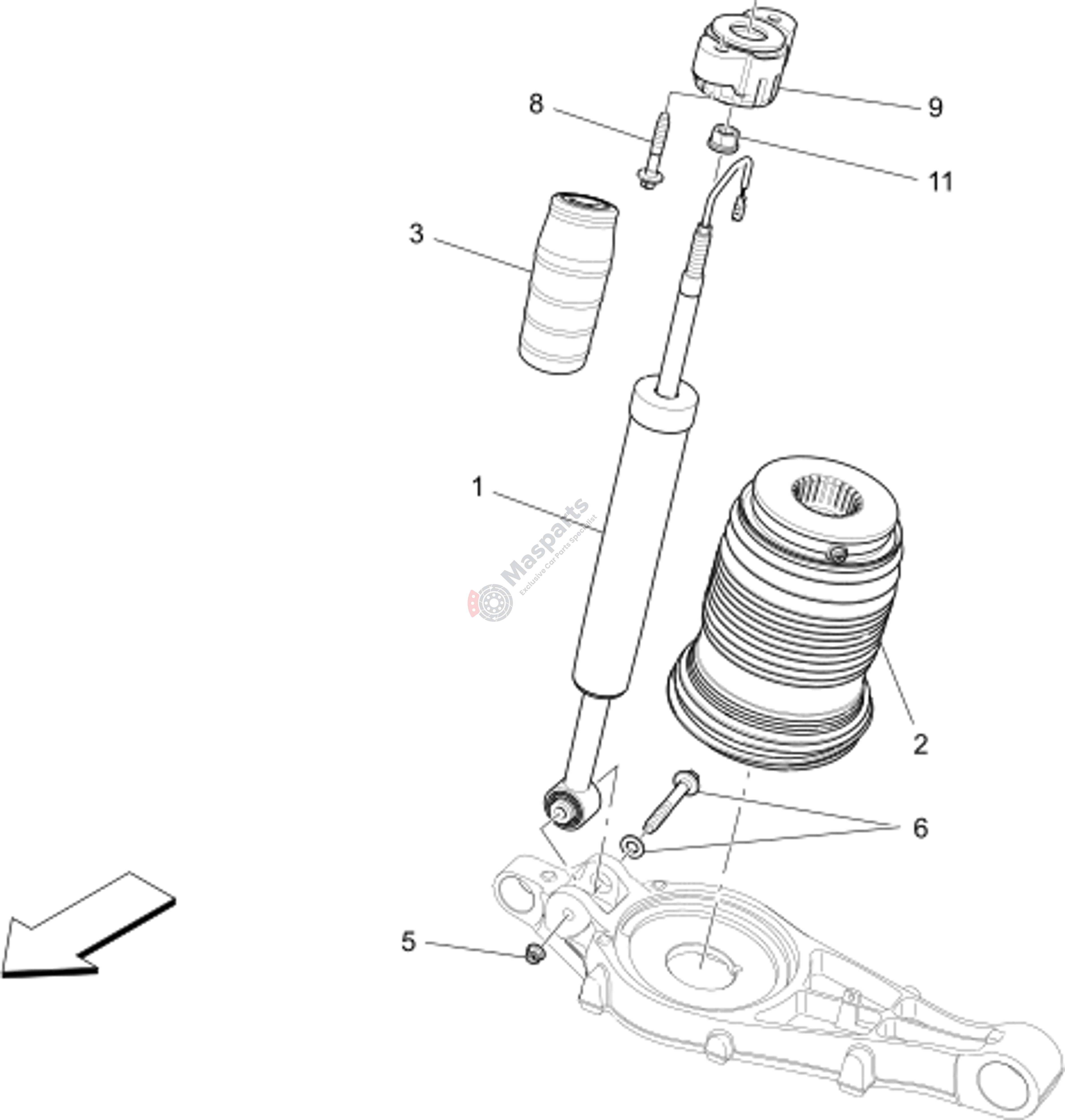

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670159686 | Rear Shock Absorber Lh/Rh M1 |
$751.98 |
|
|
| 2 | M-670100715 | Rear Air Spring Lh/Rh |
$720.18 |
|
|
| 3 | M-670039252 | Shock Absorber |
$45.72 |
|
|
| 5 | M-675000127 | Nut |
$2.15 |
|
|
| 6 | M-675000592 | Screw ˇ |
$2.69 |
|
|
| 8 | M-675000145 | Screw |
$3.95 |
|
|
| 9 | M-670002833 | R.H. Rear Susp. Elastic Cup |
$52.10 |
|
|
| 11 | M-670009802 | Nut With Washer |
$4.42 |
|
