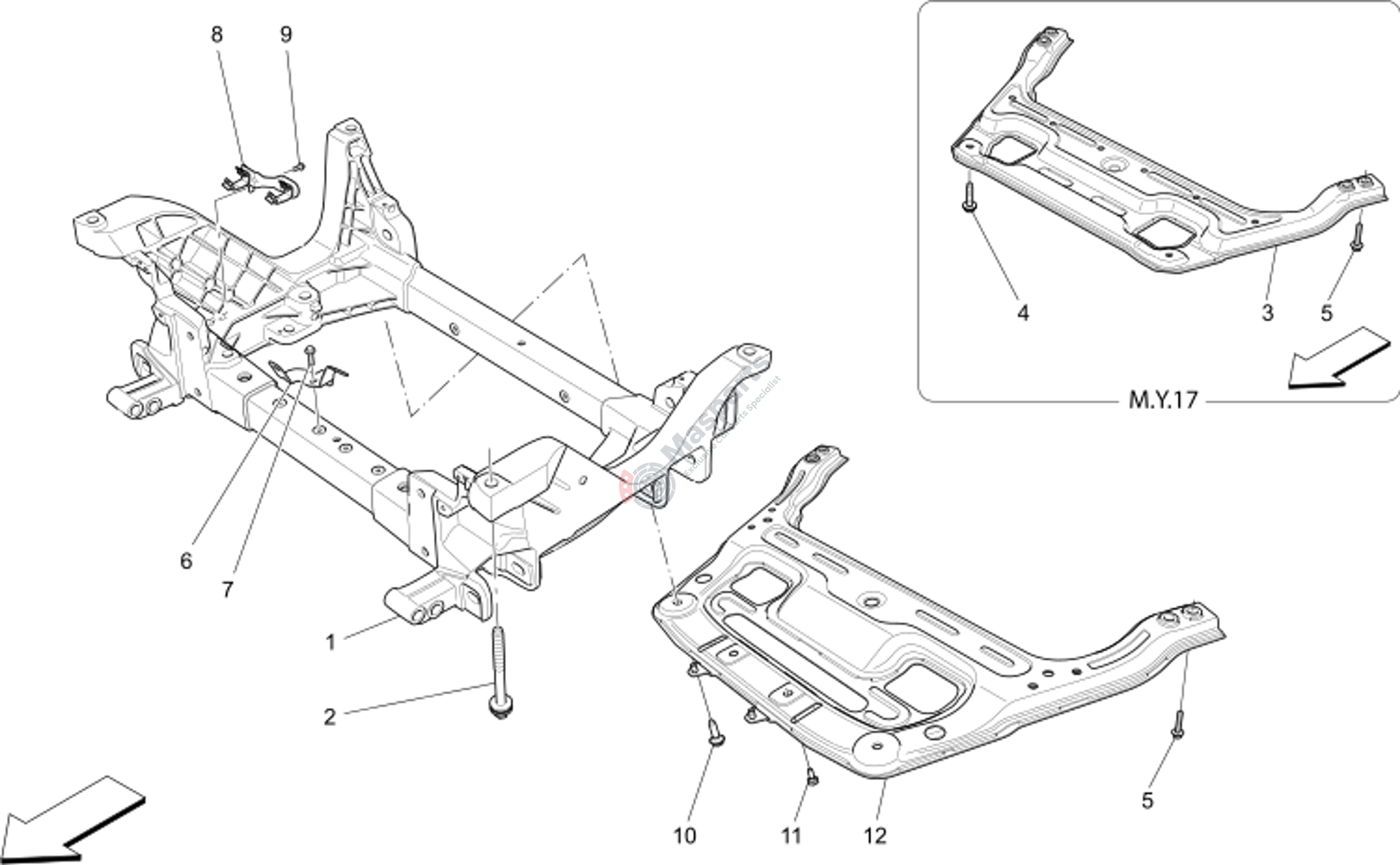

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670175137 | Front Suspension Frame M161 |
$1,882.84 |
|
|
| 2 | M-670002915 | Screw |
$14.09 |
|
|
| 5 | M-670035436 | Screw ˇ |
$2.40 |
|
|
| 6 | M-670102975 | Bracket |
$6.25 |
|
|
| 7 | M-670101724 | Screw & Washer Captive |
$3.84 |
|
|
| 8 | M-670100023 | Water Pump Fastening Bracket |
$4.93 |
|
|
| 9 | M-670101724 | Screw & Washer Captive |
$3.84 |
|
|
| 10 | M-670102972 | Screw & Washer Caprive |
$3.01 |
|
|
| 11 | M-670102973 | Screw |
$4.93 |
|
|
| 12 | M-670105640 | Crossmember Reinforcement |
$465.82 |
|
