Diagram image not available

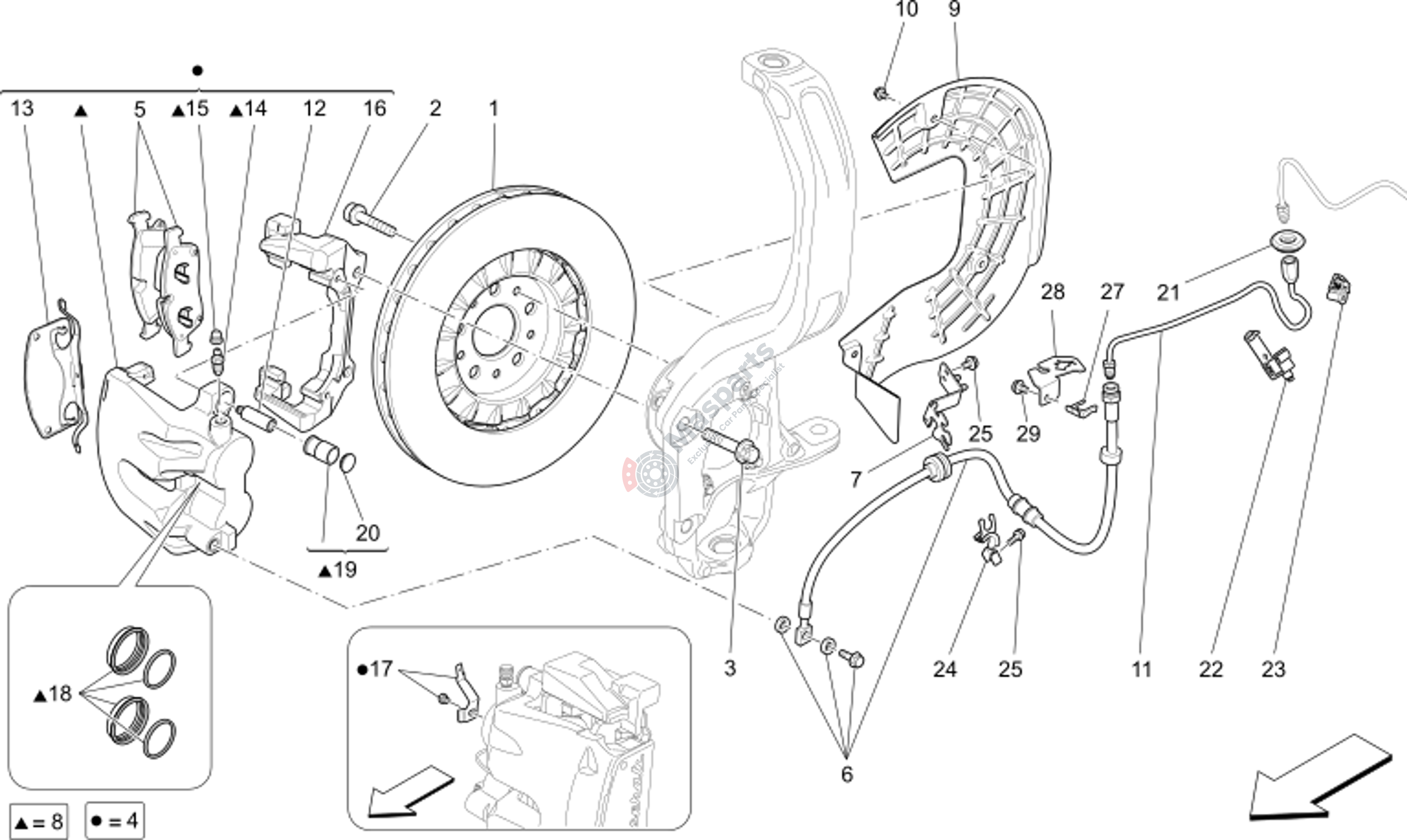

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038175 | Front Brake Disc |
$260.10 |
|
|
| 2 | M-675000081 |
Screw
|
$4.92 |
|
|
| 3 | M-670032055 | Screw |
$5.54 |
|
|
| 6 | M-670100004 | Flexible Pipe To Front Calip |
$16.79 |
|
|
| 7 | M-670032061 | Rh Front Bracket |
$10.45 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$6.86 |
|
|
| 10 | M-675000126 | Screw |
$1.61 |
|
|
| 11 | M-670039841 | Pipe |
$24.69 |
|
|
| 12 | M-673004425 | Pin |
$61.60 |
|
|
| 14 | M-673004422 | Bleed Screw |
$25.02 |
|
|
| 15 | M-673004423 | Dust Cap |
$19.56 |
|
|
| 17 | M-673004426 | Bracket |
$30.38 |
|
|
| 18 | M-673004421 | Gasket Kit |
$39.05 |
|
|
| 20 | M-673009202 | Protection Cap |
$3.00 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.32 |
|
|
| 22 | M-670039674 | Clip |
$2.38 |
|
|
| 23 | M-675000272 | Retaining Clip |
$4.97 |
|
|
| 24 | M-670007373 | Bracket |
$8.56 |
|
|
| 25 | M-675000126 | Screw |
$1.61 |
|
|
| 27 | M-675000276 | Plate |
$0.94 |
|
|
| 28 | M-670037128 | Rh Brake Pipe Bracket |
$3.58 |
|
|
| 29 | M-675000621 | Screw (M6X18) |
$0.86 |
|
