Diagram image not available

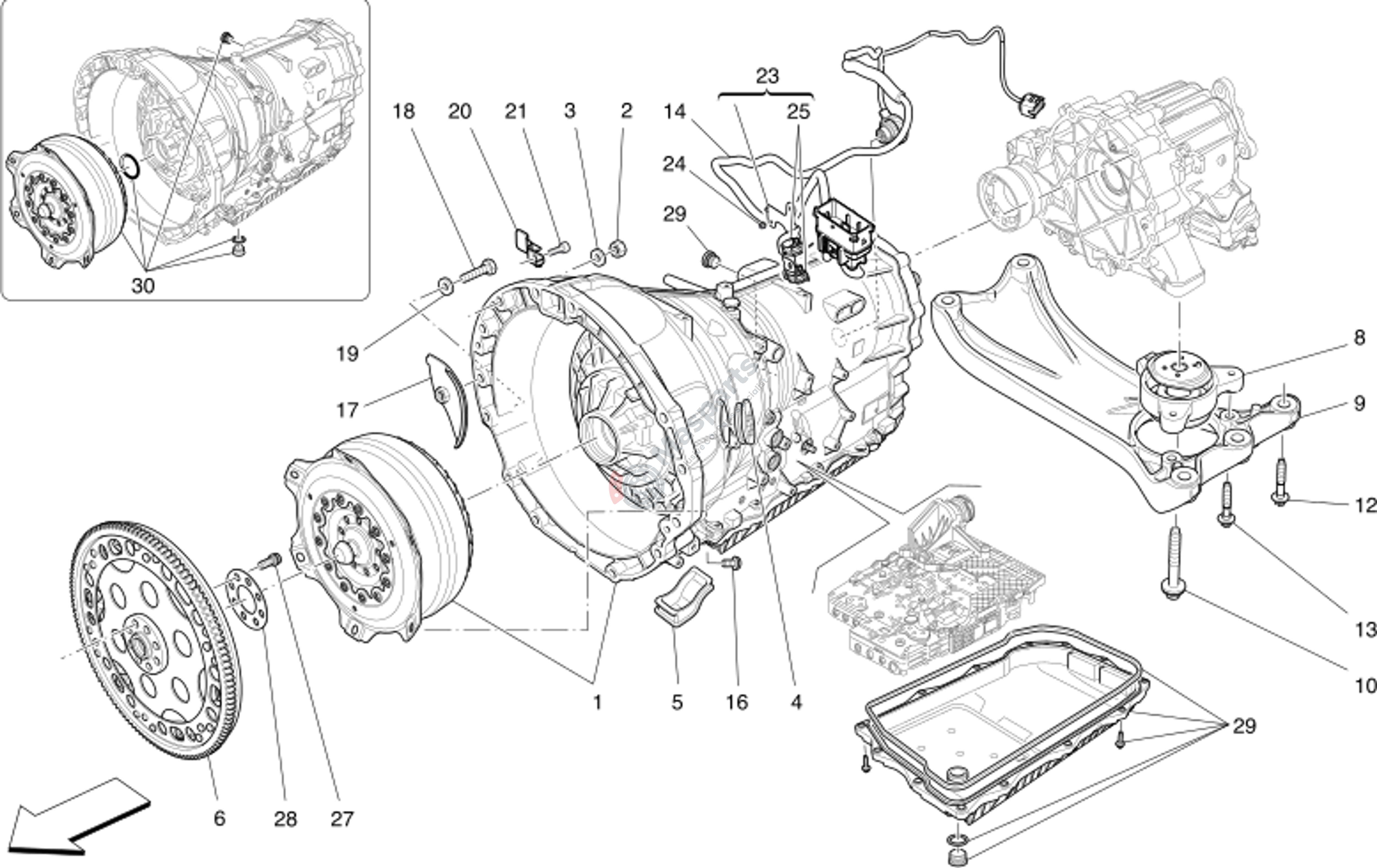

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670155635 | Transmission Auto 8Hp70 Awd |
$5,812.87 |
|
|
| 2 | M-675000184 | Nut |
$1.74 |
|
|
| 3 | M-675000098 | Washer |
$1.86 |
|
|
| 4 | M-670003520 | Plug |
$5.04 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.04 |
|
|
| 6 | M-673010357 | V6 Gasoline Engine Flywheel |
$807.35 |
|
|
| 8 | M-670106865 | Gearbox Side Suspension Bush |
$94.83 |
|
|
| 9 | M-670105588 | Gearbox Mounting Cross Membe |
$197.68 |
|
|
| 10 | M-670003988 | Screw |
$11.97 |
|
|
| 12 | M-670035766 | Screw |
$2.40 |
|
|
| 13 | M-670035590 | Screw |
$3.01 |
|
|
| 14 | M-670007401 | Automatic Gearbox Wiring |
$116.83 |
|
|
| 16 | M-670005384 | Screw |
$2.40 |
|
|
| 17 | M-670003684 | Closing Plate |
$5.61 |
|
|
| 18 | M-675000380 | Screw |
$2.00 |
|
|
| 19 | M-675000378 | Washer |
$1.26 |
|
|
| 20 | M-670005079 | Bracket |
$4.45 |
|
|
| 21 | M-675000191 | Screw |
$1.98 |
|
|
| 23 | M-670035991 | Gearbox Cable Fastening Brac |
$9.96 |
|
|
| 24 | M-675000093 | Nut |
$1.44 |
|
|
| 27 | M-670002932 | Screw |
$5.61 |
|
|
| 28 | M-670002257 | Shim |
$4.45 |
|
|
| 29 | M-673005766 | Oilpan |
$544.10 |
|
|
| 30 | M-673005770 | Converter |
$2,895.84 |
|
