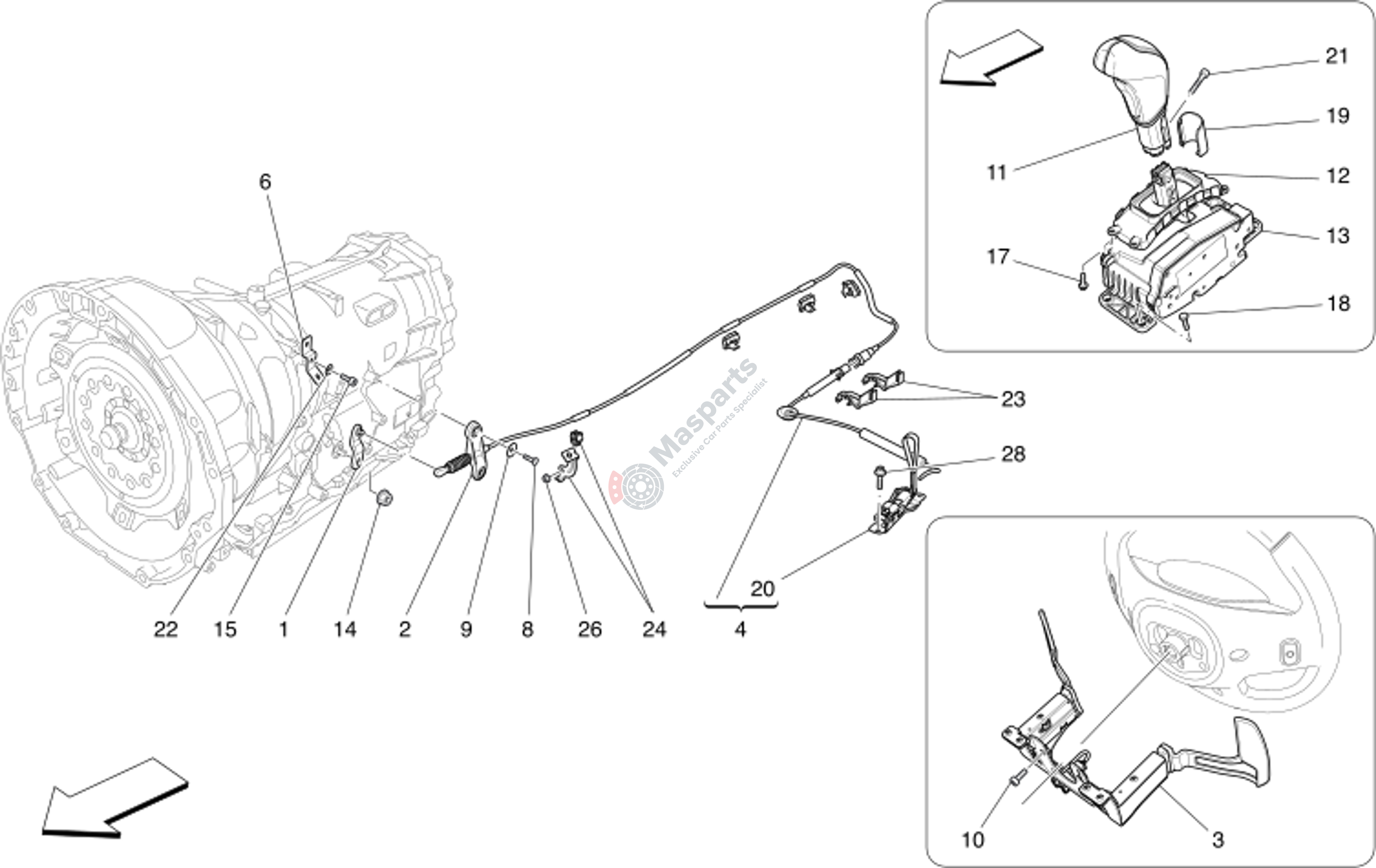

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003474 | Lever |
$11.23 |
|
|
| 2 | M-670037585 | Cavo Bowden Park Release |
$112.87 |
|
|
| 4 | M-670035011 | Trailing Cable |
$106.93 |
|
|
| 6 | M-670003473 | Mounting Bracket |
$55.29 |
|
|
| 8 | M-675000166 | Screw |
$1.46 |
|
|
| 9 | M-675000178 | Washer |
$1.20 |
|
|
| 10 | M-675000180 | Screw |
$1.20 |
|
|
| 13 | M-670031740 | Gear Selector (Lhd) |
$774.08 |
|
|
| 14 | M-670003475 | Nut |
$1.68 |
|
|
| 15 | M-675000191 | Screw |
$1.98 |
|
|
| 17 | M-670035716 | Fastening Screw |
$1.49 |
|
|
| 18 | M-675000434 | Screw |
$4.52 |
|
|
| 20 | M-673002716 | Park Release Lever (No Cable |
$21.18 |
|
|
| 21 | M-675000526 | Screw |
$1.82 |
|
|
| 23 | M-670035043 | Clip M161 |
$3.01 |
|
|
| 24 | M-670035041 | Bracket M161 |
$4.45 |
|
|
| 28 | M-675000811 | Screw |
$1.35 |
|
