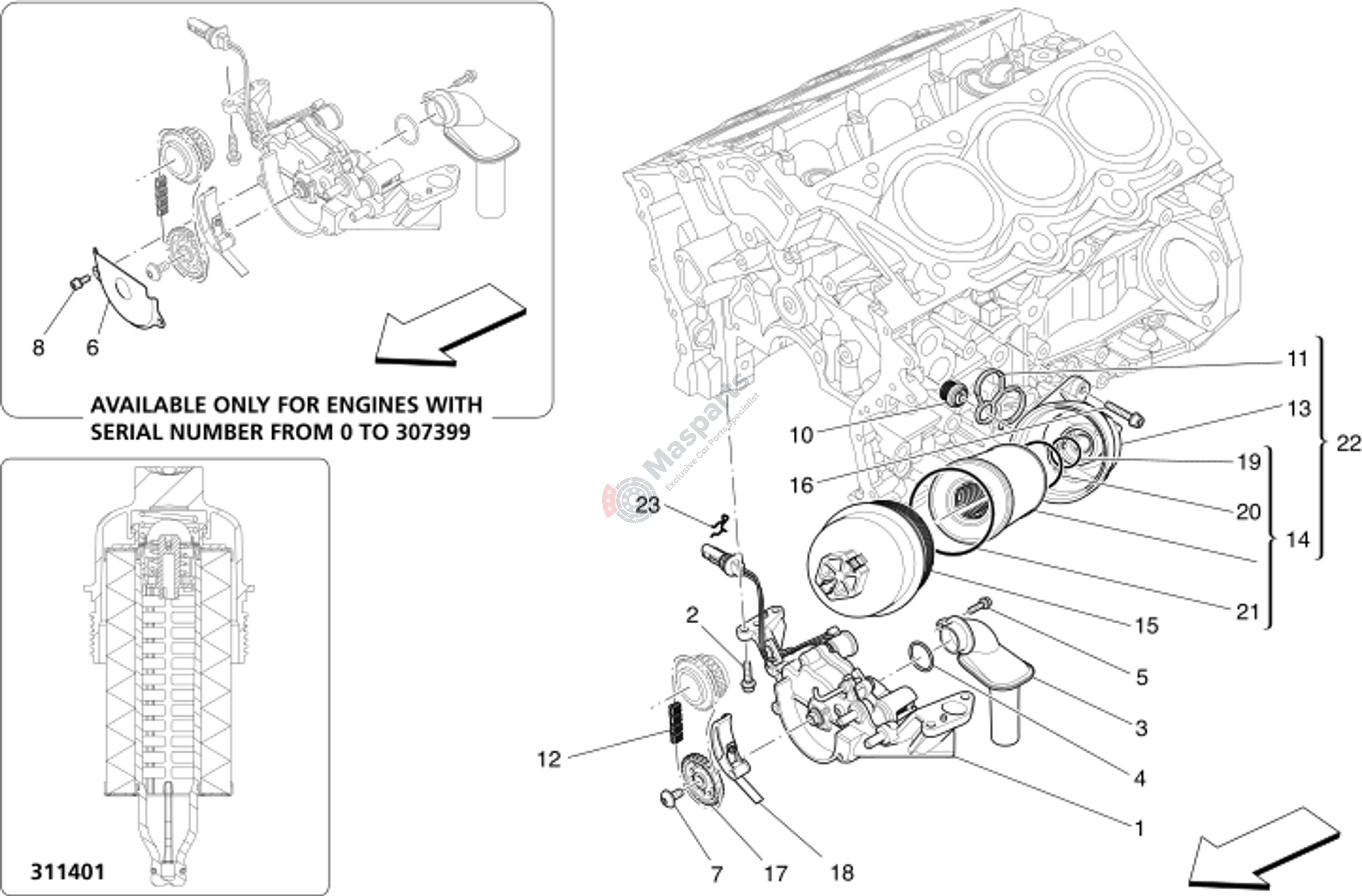

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-853065 | Oil Pump |
$518.66 |
|
|
| 2 | M-282397 | Screw |
$2.40 |
|
|
| 3 | M-338007 | Awd Oil Catching |
$31.46 |
|
|
| 4 | M-139934 | O Ring For Union To Oil T |
$3.06 |
|
|
| 5 | M-282397 | Screw |
$2.40 |
|
|
| 6 | M-275702 | Oil Pump Shield |
$10.59 |
|
|
| 7 | M-284021 | Screw |
$20.44 |
|
|
| 8 | M-282391 | Screw |
$3.84 |
|
|
| 10 | M-287292 | Oil Non-Return Valve |
$924.78 |
|
|
| 11 | M-289393 | Gasket |
$34.85 |
|
|
| 12 | M-328308 | Oil Pump Chain |
$27.54 |
|
|
| 13 | M-298937 | Oil Filter Support |
$113.52 |
|
|
| 14 | M-311401 | Oil Filter Cartridge With Cap |
$50.34 |
|
|
| 16 | M-231622 | Socket Head Screw With Washe |
$1.12 |
|
|
| 17 | M-276592 | Oil Pump Controm Toothed Whe |
$21.18 |
|
|
| 18 | M-276594 | Oil Pump Chain Tightener |
$15.99 |
|
|
| 19 | M-300526 | O-Ring D25X11 |
$3.01 |
|
|
| 20 | M-301565 | O-Ring (V6 Oil Filter Cartri |
$1.20 |
|
|
| 21 | M-673002892 | Oil Filter Cartridge O-Ring |
$20.76 |
|
|
| 22 | M-311356 | Cpl V6 Oil Filter Support (W |
$406.12 |
|
|
| 23 | M-304893 | Clip |
$2.64 |
|
