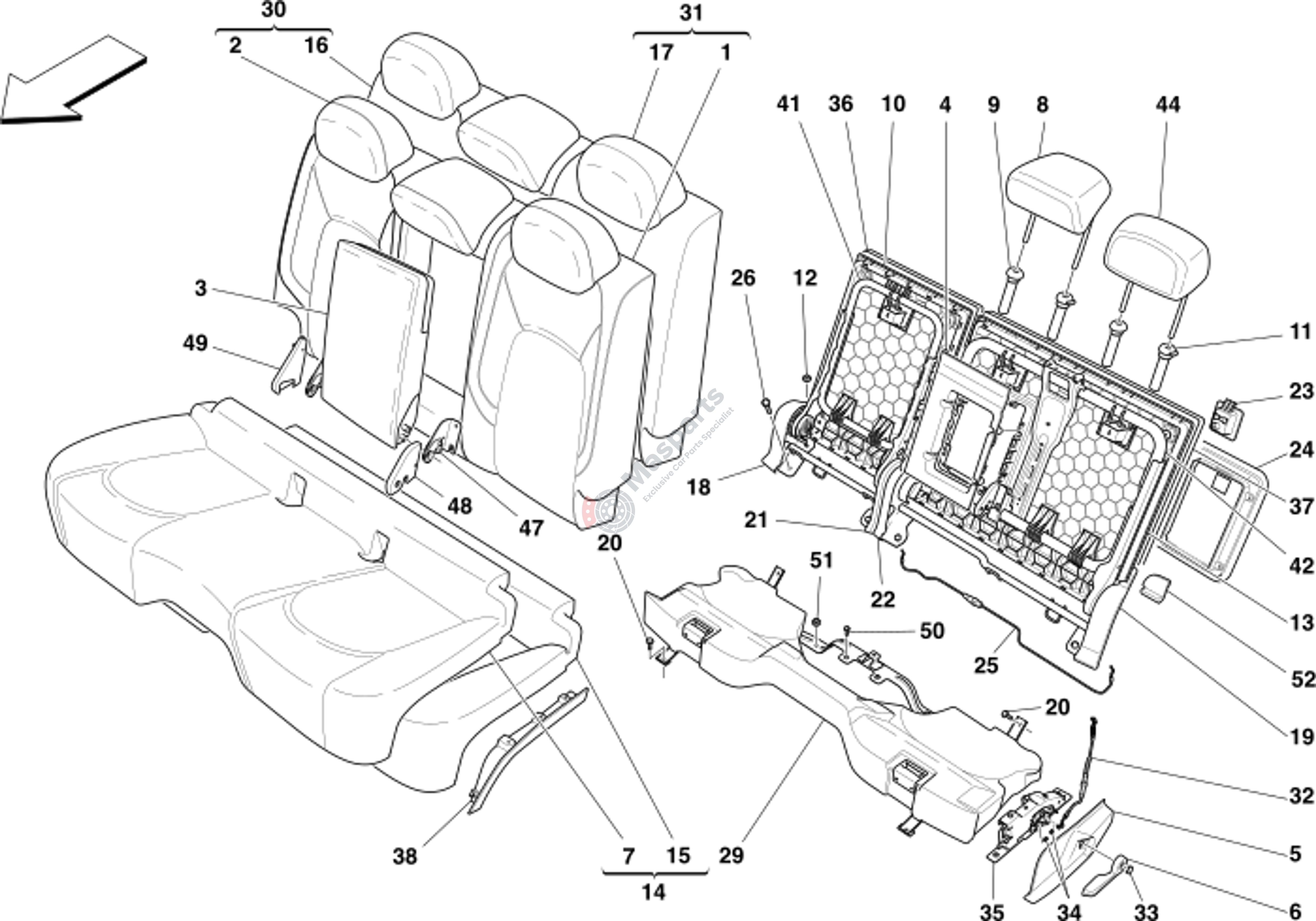

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-673005531 | Rear Plastic Panel Rh Black |
$68.00 |
|
|
| 12 | M-675000184 | Nut |
$1.74 |
|
|
| 13 | M-673005532 | Rear Plastic Panel Lh Black |
$76.87 |
|
|
| 15 | M-673012880 | Rear Cushion Padding |
$217.71 |
|
|
| 16 | M-673005521 | Rh Seatback Padding |
$154.69 |
|
|
| 17 | M-673005522 | Lh Seatback Padding |
$221.53 |
|
|
| 20 | M-675000655 | Screw |
$1.88 |
|
|
| 25 | M-673005551 | Bowden Cable |
$22.03 |
|
|
| 26 | M-675000655 | Screw |
$1.88 |
|
|
| 29 | M-670176440 | Rear Cushion Structure Epp |
$399.98 |
|
|
| 32 | M-673006855 | Bowden Cable |
$22.03 |
|
|
| 34 | M-673005517 | End Stop Rubber |
$6.90 |
|
|
| 35 | M-673005552 | Rh Recliner Mechanism |
$158.13 |
|
|
| 41 | M-673005519 | Rh Seatback Structure 40% |
$481.62 |
|
|
| 42 | M-673012879 | Lh Seatback Structure |
$786.51 |
|
|
| 47 | M-673005565 | Armrest Bracket |
$25.77 |
|
|
| 50 | M-675000111 | Screw |
$2.56 |
|
|
| 51 | M-675000043 | Nut |
$1.09 |
|
