Diagram image not available

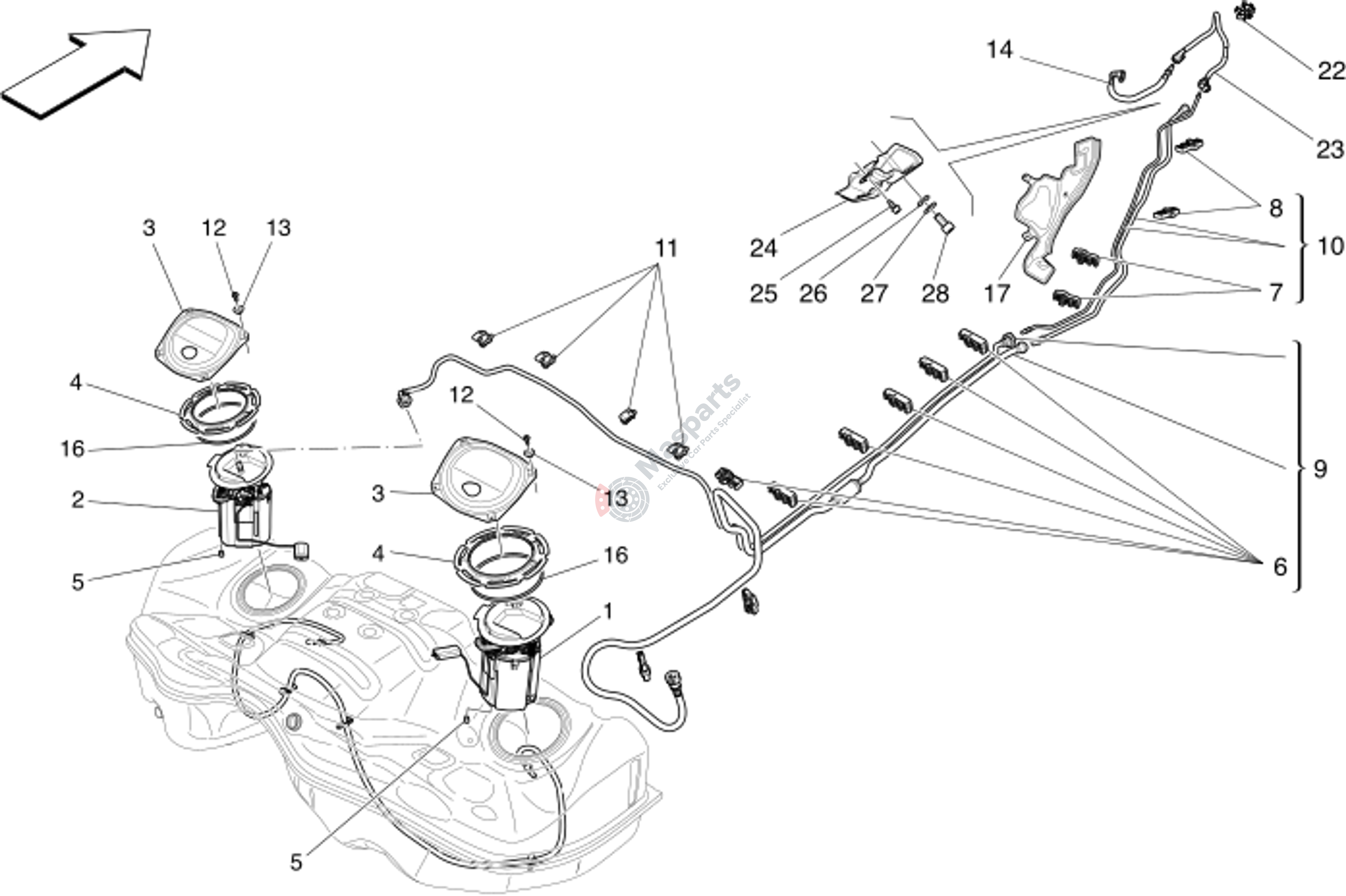

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003733 | Rh Fuel Level Indicator (V8 |
$440.55 |
|
|
| 2 | M-670178911 | Lh Fuel Pump (V6 Gasoline) |
$557.66 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
$17.47 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
$44.18 |
|
|
| 5 | M-670009292 | Fuel Adjustment Dowel |
$3.20 |
|
|
| 6 | M-670033279 | Clip |
$2.77 |
|
|
| 9 | M-670105399 | Pipe |
$183.34 |
|
|
| 10 | M-670103707 | Front Underfloor Fuel Pipes |
$151.83 |
|
|
| 11 | M-670005082 | Spring |
$1.52 |
|
|
| 12 | M-675000465 | Screw |
$1.20 |
|
|
| 13 | M-675000452 | Small Block Trim Screw Retai |
$1.20 |
|
|
| 14 | M-670108532 | Engine Compartment Fuel Pipe |
$20.63 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
$19.81 |
|
|
| 17 | M-670174329 | Heat Guard |
$93.95 |
|
|
| 22 | M-670100118 | Clip |
$2.72 |
|
|
| 23 | M-670105401 | Gasoline Pipe Section |
$36.83 |
|
|
| 24 | M-670030163 | Front Fuel Pipe Guard |
$8.70 |
|
|
| 25 | M-675000173 | Screw |
$1.99 |
|
|
| 28 | M-675000796 | Screw |
$2.79 |
|
