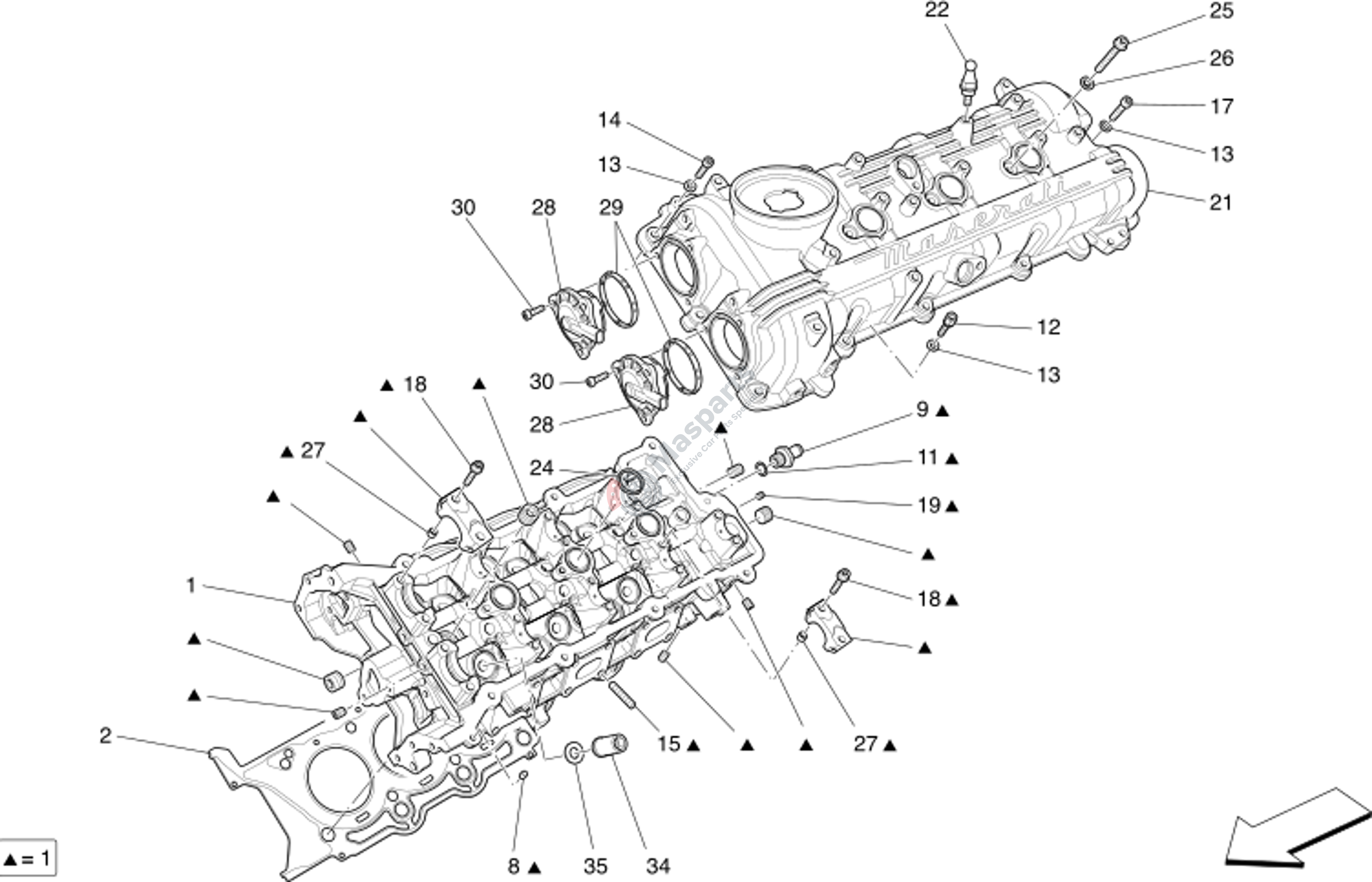

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-305771 | Lh Cpl Cylinder Head V6 Bz |
$2,921.77 |
|
|
| 2 | M-324017 | L.H. Head Gasket |
$240.31 |
|
|
| 8 | M-10839510 | Centering Dowel |
$2.99 |
|
|
| 9 | M-292870 | Union |
$14.51 |
|
|
| 12 | M-214412 | Stud M6X25(M) M6X10(F) H=14 |
$15.09 |
|
|
| 13 | M-675000106 | Washer |
$1.60 |
|
|
| 14 | M-157218 | Socket Head Screw M 6X 25 |
$1.94 |
|
|
| 15 | M-272605 | Stud M8X16 Stem M8X20 |
$4.47 |
|
|
| 17 | M-201599 | Socket Head Screw M 6X 20 |
$2.04 |
|
|
| 18 | M-243719 | Socket Head Screw M 6X35 |
$2.27 |
|
|
| 19 | M-199760 | Tapered Threaded Plug 6X1 |
$1.49 |
|
|
| 21 | M-318090 | Lh Cylinder Head Cover (Cpl) |
$599.09 |
|
|
| 22 | M-292326 | Pin |
$7.92 |
|
|
| 24 | M-303025 | Gasket |
$11.19 |
|
|
| 25 | M-296759 | Screw |
$2.27 |
|
|
| 26 | M-296075 | Kok 13X5.8 Washer |
$14.30 |
|
|
| 27 | M-102725 | Centring Dowel D.8X8 |
$1.69 |
|
|
| 28 | M-306857 | Oil Pressure Check Valve |
$59.44 |
|
|
| 29 | M-302374 | Gasket |
$8.39 |
|
|
| 30 | M-14304221 | Tcei M5X16 Screw |
$1.68 |
|
|
| 34 | M-321187 | Cylinder Head Nut+Washer Kit |
$23.93 |
|
