The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

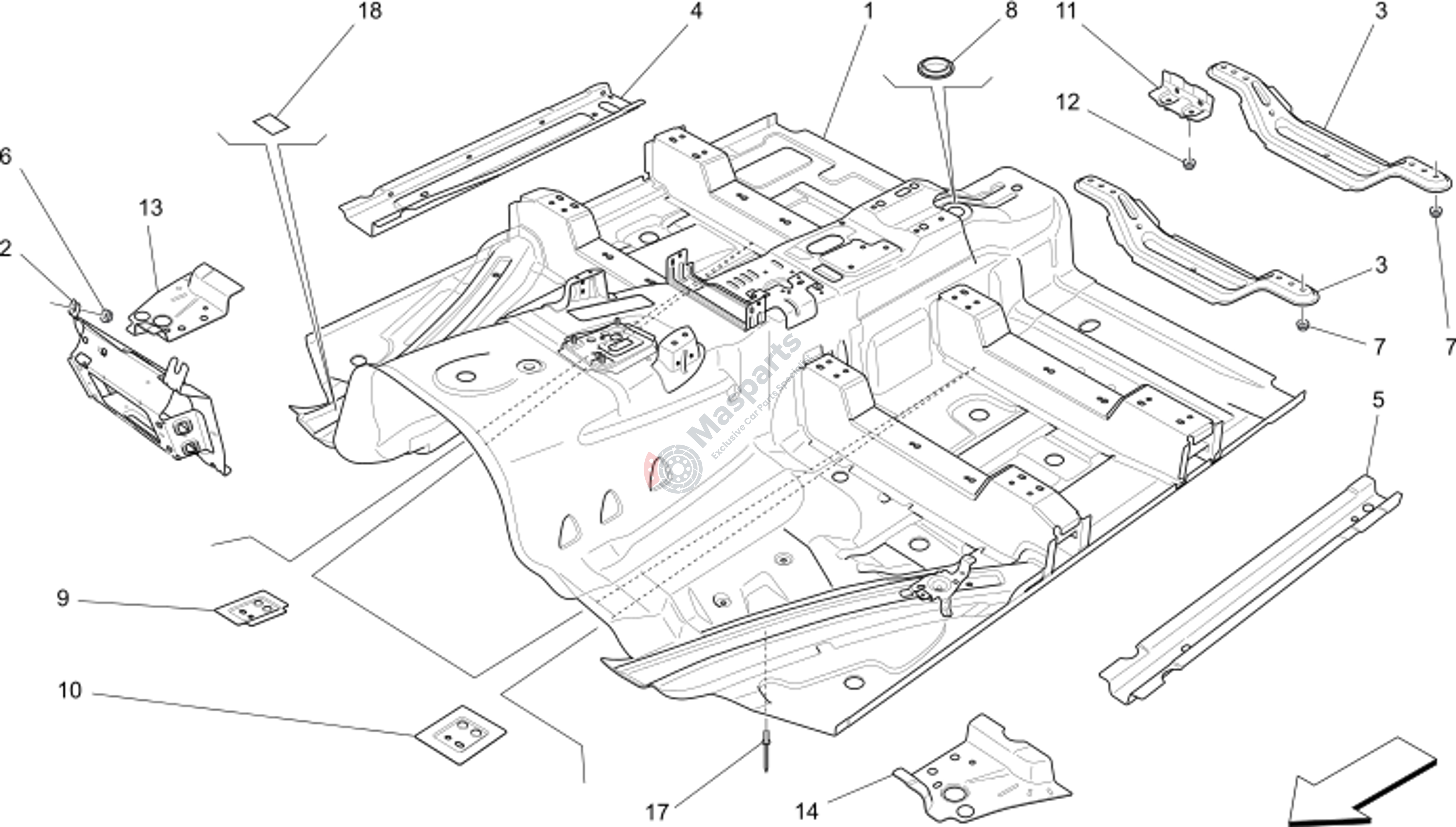

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013834 | Central Floor |
$3,293.80 |
|
|
| 2 | M-670101542 | Lhd Nbc Bracket |
$53.16 |
|
|
| 3 | M-670034250 | Underfloor Tunnel Rear Reinf |
$106.34 |
|
|
| 4 | M-673005699 | Rh Underfloor Side Member |
$99.82 |
|
|
| 5 | M-673005700 | Lh Underfloor Side Member |
$80.79 |
|
|
| 6 | M-675000412 | Hex Nut |
$1.23 |
|
|
| 8 | M-670005072 | Plug |
$14.38 |
|
|
| 9 | M-670003751 | Rh Plate |
$50.64 |
|
|
| 10 | M-670039312 | Plate |
$44.73 |
|
|
| 11 | M-670034846 | Bracket |
$113.00 |
|
|
| 17 | M-670037283 | Rivet |
$4.96 |
|
|
| 18 | M-670036842 | Cap |
$1.11 |
|
