Diagram image not available

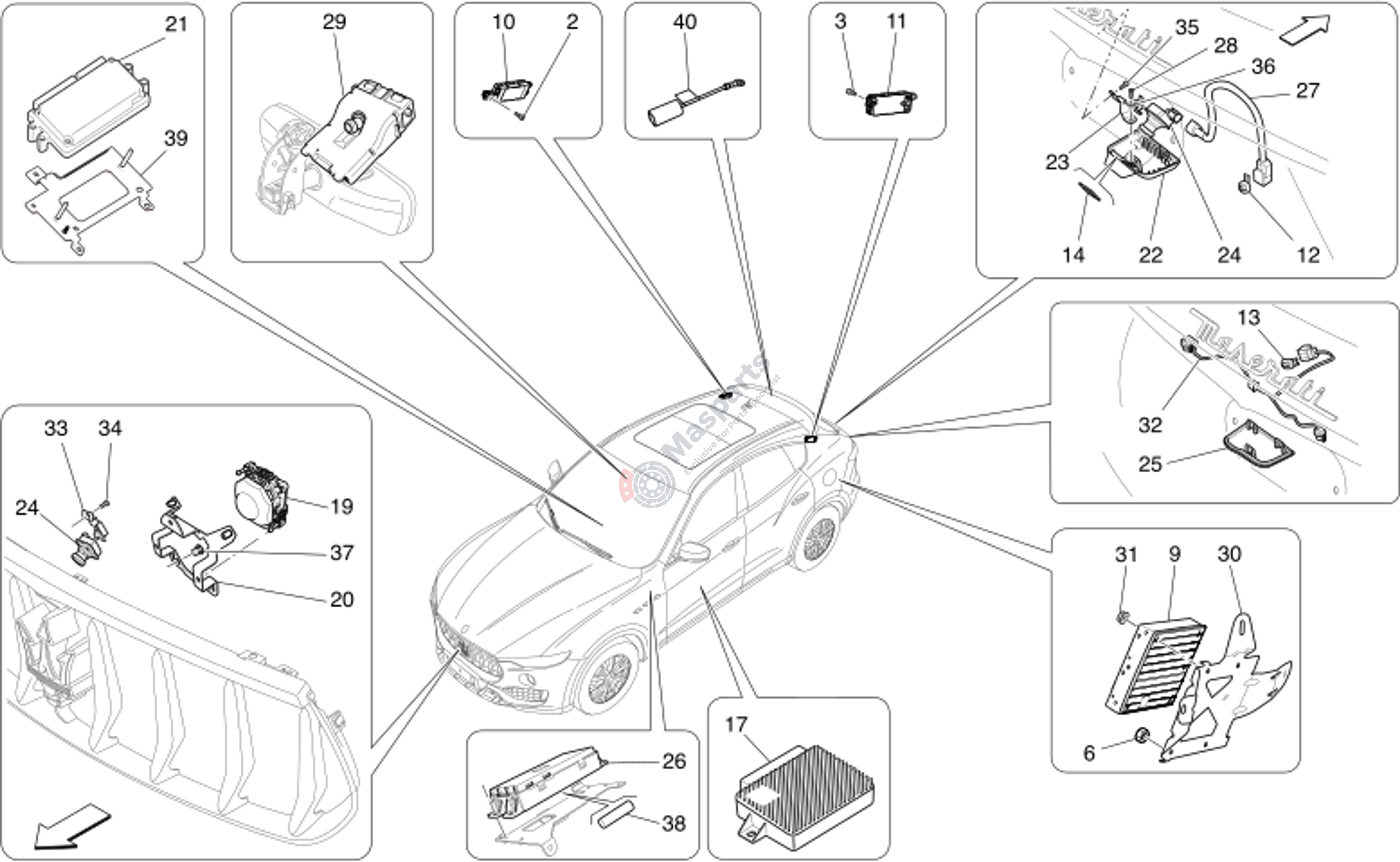

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000084 | Tv Antenna Amplifier Fixing |
$0.62 |
|
|
| 3 | M-675000084 | Tv Antenna Amplifier Fixing |
$0.62 |
|
|
| 6 | M-675000095 | Nut |
$0.77 |
|
|
| 10 | M-670106194 | Fm2/Dab Amplifier |
$45.05 |
|
|
| 11 | M-670106193 | Am/Fm1 Antenna Amplifier |
$37.93 |
|
|
| 12 | M-675000702 | Connector Clip |
$1.67 |
|
|
| 13 | M-675000682 | Connector Clip |
$1.69 |
|
|
| 14 | M-670101171 | Camera Gasket |
$1.70 |
|
|
| 17 | M-670174715 | Ecu Noise Reduction |
$505.95 |
|
|
| 20 | M-670035989 | Radar Fastening Bracket |
$22.56 |
|
|
| 22 | M-670279608 | Camera Fixing Bracket |
$24.51 |
|
|
| 23 | M-670102507 | Camera Fixing Bracket |
$3.13 |
|
|
| 24 | M-670104387 | Surround Camera |
$355.93 |
|
|
| 27 | M-670100600 | Rear Camera Wiring |
$134.57 |
|
|
| 28 | M-675000194 | Screw |
$0.96 |
|
|
| 32 | M-670036587 | Rear Spoiler Wiring |
$86.82 |
|
|
| 33 | M-670035990 | Front Camera Bracket |
$3.05 |
|
|
| 34 | M-675000604 | Screw |
$3.29 |
|
|
| 35 | M-675000194 | Screw |
$0.96 |
|
|
| 36 | M-675000772 | Washer |
$1.16 |
|
|
| 37 | M-670036946 | Fastening |
$3.05 |
|
|
| 38 | M-673011017 | Tbm Battery |
$64.03 |
|
